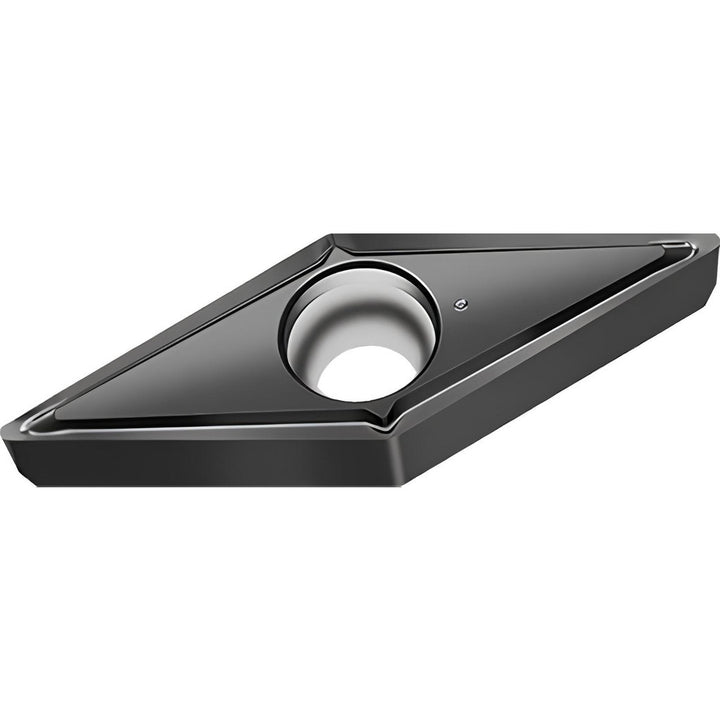

VCGT160402-FM2 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7499383

Walter

VCGT160402-FM2 WSM01 Carbide Insert, Grade WSM01, TiAlN - Walter 7499383

MFR# 7499383ISO/ANSI# VCGT3(3)0.5-FM2 WSM01Series VCGT-FM2

$36.05List $46.23 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeWSM01
MaterialCarbide
CoatingTiAlN

Description

The Walter 7499383 is a VCGT160402-FM2 WSM01 carbide indexable insert, grade WSM01, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Chip breakerFM2
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle35degree
Industry standard numberVCGT3(3)0.5-FM2 WSM01
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond 35
Insert size code330.5
Insert styleVCGT
Insert thickness in3/16
Iso codeVCGT160402-FM2 WSM01
Lead angle35degree
Length range0.6500 - 0.7000
Manufacturers catalog number7499383
Manufacturer gradeWSM01
Material gradeM10; S10; P10; N10; H20
Maximum depth of cut0.0790
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel; Non-Ferrous Metal; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
