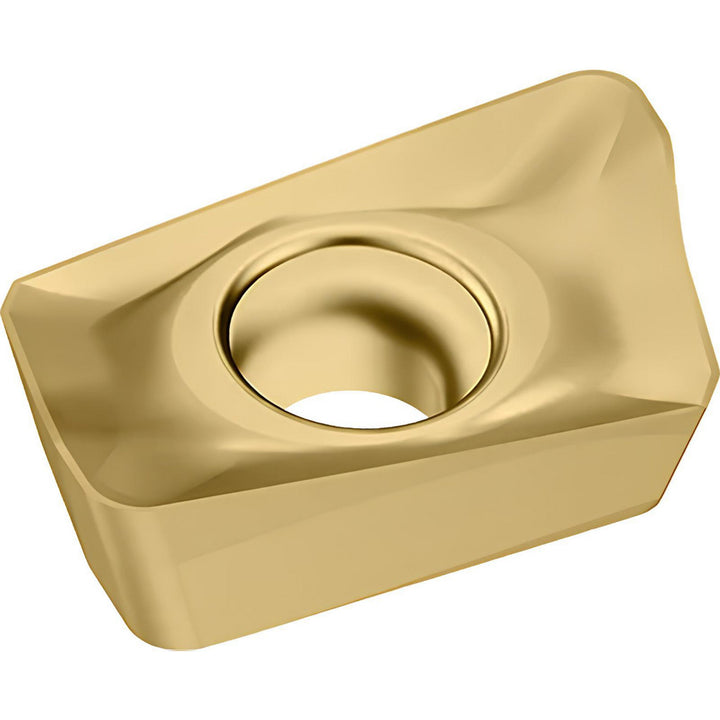

BCMT090308R-G55 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7539563

Walter

BCMT090308R-G55 WKP35G Solid Carbide Insert, Grade WKP35G, TiAlN - Walter 7539563

MFR# 7539563ISO/ANSI# BCMT090308R-G55 WKP35GCat# BCMT090308R-G55Series BCMT

$26.36List $33.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWKP35G
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 7539563 is a BCMT090308R-G55 WKP35G solid carbide indexable insert, grade WKP35G, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeBCMT090308R-G55 WKP35G
Chip breakerG55
Coating finishTiAlN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityM5130
Cutting edge styleChamfered; Honed
Hole diameter0.1102
Included angle degree82
Inscribed circle0.2480
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code090308
Insert styleBCMT
Iso codeBCMT090308R-G55 WKP35G
Length in13/32
Length range0.4000 to 0.4500
Manufacturers catalog numberBCMT090308R-G55
Manufacturer gradeWKP35G
Material applicationSteel; Cast Iron
Material gradeP35; K35
Maximum depth of cut0.4060
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle20
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1260
Thickness range0.1250 to 0.1500
Width0.2480
