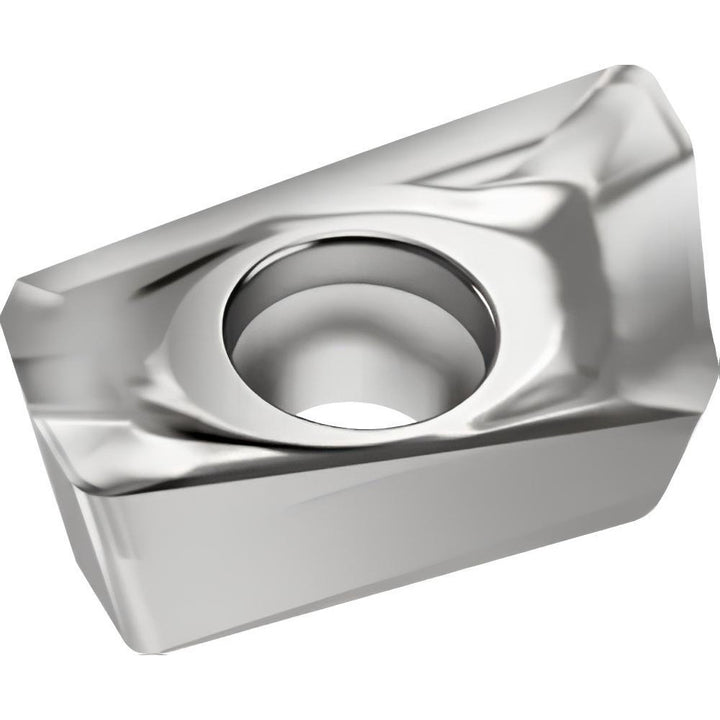

BCHT160508R-K85 WK10 Solid Carbide Insert, Grade WK10 - Walter 7539681

Walter

BCHT160508R-K85 WK10 Solid Carbide Insert, Grade WK10 - Walter 7539681

MFR# 7539681ISO/ANSI# BCHT160508R-K85 WK10Cat# BCHT160508R-K85Series BCHT

$28.22List $36.19 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWK10
MaterialSolid Carbide

Description

The Walter 7539681 is a BCHT160508R-K85 WK10 solid carbide indexable insert, grade WK10. Suited for non-ferrous metal.

Specifications

Ansi codeBCHT160508R-K85 WK10
Chip breakerK85
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityF2010; M5130
Cutting edge styleSharp
Hole diameter0.1732
Included angle degree82
Inscribed circle0.3900
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160508
Insert styleBCHT
Iso codeBCHT160508R-K85 WK10
Length0.6810
Length range0.6500 to 0.7000
Manufacturers catalog numberBCHT160508R-K85
Manufacturer gradeWK10
Material applicationNon-Ferrous Metal
Material gradeN10
Maximum depth of cut0.6810
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle7.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2260
Thickness range0.2200 to 0.2350
Width0.3900
