Walter

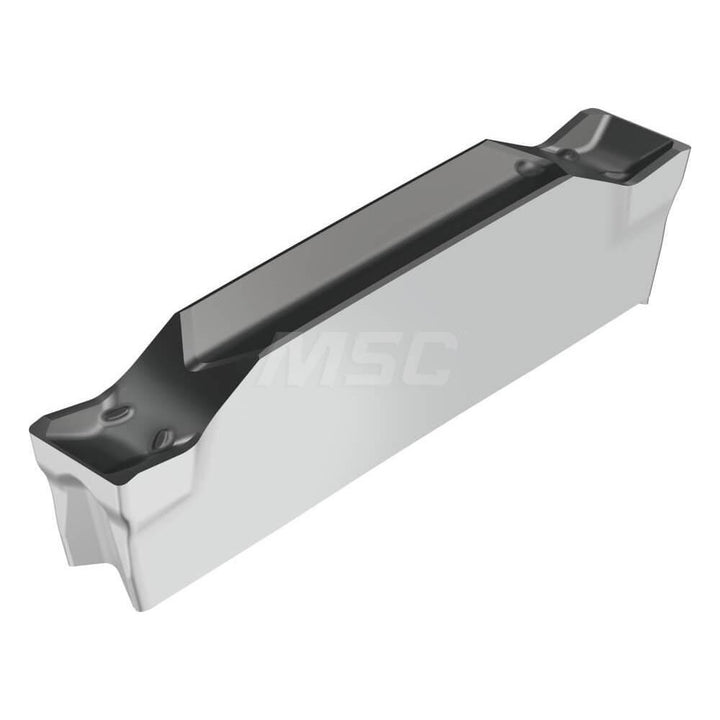

DX183E300N02CE4 WKP23S Carbide Insert, Grade WKP23S, Al2O3 - Walter 7795869
MFR# 7795869ISO/ANSI# DX183E300N02CE4 WKP23SSeries DX-E-CE4
$28.14List $36.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWKP23S
MaterialCarbide
CoatingAl2O3
Description
The Walter 7795869 is a DX183E300N02CE4 WKP23S carbide indexable insert, grade WKP23S, Al2O3 coated. Suited for steel.
Specifications
Ansi codeDX183E300N02CE4 WKP23S
Chip breakerCE4
Coating finishAl2O3
Coating processCVD
Corner radius0.0080
Cutting width0.118
Insert handNeutral
Insert materialCarbide
Insert size code3E300N02
Insert styleDX18
Iso codeDX183E300N02CE4 WKP23S
Lead angle0
Manufacturer gradeWKP23S
Maximum depth of cut (mm)17.00
Multi use toolYes
Overall width0.118
Primary workpiece materialSteel
Secondary workpiece materialCast Iron
StandardsANSI; ISO
