Walter
DX182E200N02CF6 WSM33S Solid Carbide Insert, Grade WSM33S, Al - Walter 7795900
MFR# 7795900ISO/ANSI# DX182E200N02CF6 WSM33SSeries Tiger-tec Silver
$30.56List $39.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingAl
Description

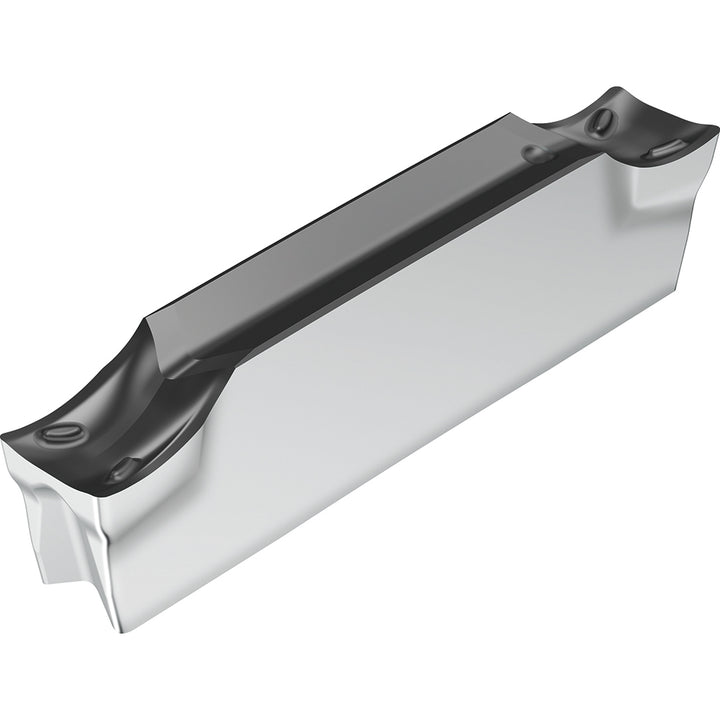

The Walter 7795900 is a DX182E200N02CF6 WSM33S solid carbide indexable insert, grade WSM33S, Al coated. Suited for superalloy.
Specifications
Ansi codeDX182E200N02CF6 WSM33S
Chip breakerCF6
Coating finishAl
Corner radius (mm)0.20
Cutting height0.1810
Cutting width0.0790
Cut conditionStable
Insert handNeutral
Insert materialSolid Carbide
Insert size2E200
Insert size code2E200N02
Insert styleDX18
Iso codeDX182E200N02CF6 WSM33S
Manufacturer gradeWSM33S
Material gradeC5
Maximum depth of cut0.6690
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Number of cutting edges2
Overall length (mm)18.00
Primary workpiece materialSuperalloy
StandardsANSI; ISO
