Walter

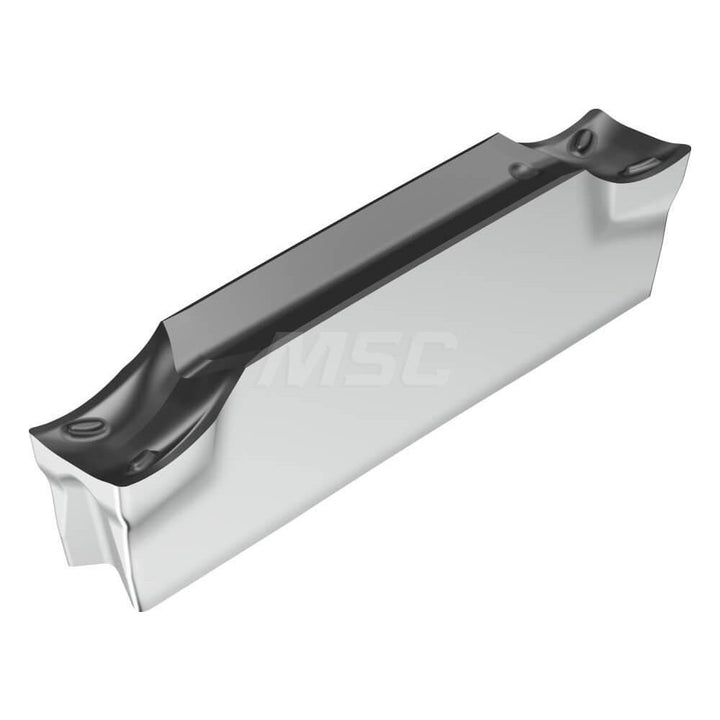

DX181E150R10CF6 WSM33S Solid Carbide Insert, Grade WSM33S, Al - Walter 7910430
MFR# 7910430ISO/ANSI# DX181E150R10CF6 WSM33SSeries DX-E-R-CF6
$33.59List $43.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeWSM33S
MaterialSolid Carbide
CoatingAl
Description
The Walter 7910430 is a DX181E150R10CF6 WSM33S solid carbide indexable insert, grade WSM33S, Al coated. Suited for superalloy.
Specifications
Ansi codeDX181E150R10CF6 WSM33S
Chip breakerCF6
Coating finishAl
Coating processPVD
Cutting width0.0590
Insert handRight Hand
Insert materialSolid Carbide
Insert size code1E150R10
Insert styleDX18
Iso codeDX181E150R10CF6 WSM33S
Lead angle10
Manufacturer gradeWSM33S
Maximum depth of cut (mm)17.00
Multi use toolYes
Overall width0.0590
Primary workpiece materialSuperalloy
StandardsANSI; ISO
