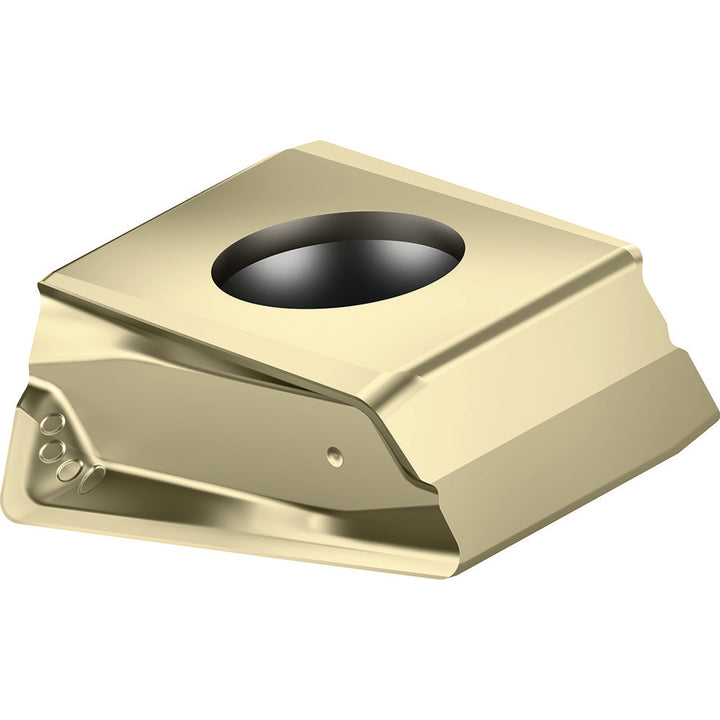

LNHU160708R-L55T WSP45G Carbide Insert, Grade WSP45G, TiAlN/Al2O3/(ZrN) - Walter 7924241

Walter

LNHU160708R-L55T WSP45G Carbide Insert, Grade WSP45G, TiAlN/Al2O3/(ZrN) - Walter 7924241

MFR# 7924241ISO/ANSI# LNHU160708R-L55T WSP45GCat# LNHU160708R-L55T WSP45GSeries LNHU

$36.71List $47.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeWSP45G
MaterialCarbide
CoatingTiAlN/Al2O3/(ZrN)

Description

The Walter 7924241 is a LNHU160708R-L55T WSP45G carbide indexable insert, grade WSP45G, TiAlN/Al2O3/(ZrN) coated. Suited for steel, stainless steel, super alloys.

Specifications

Chip breakerL55T
Coating finishTiAlN/Al2O3/(ZrN)
Coating processPVD
Corner radius0.0315
Cutting directionRight Hand
Cutting edge effective length0.6299
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeRectangle
Insert size160708
Insert size code16
Insert styleLNHU
Iso codeLNHU160708R-L55T WSP45G
Length0.6299
Manufacturers catalog numberLNHU160708R-L55T WSP45G
Manufacturer gradeWSP45G
Maximum depth of cut0.6299
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Super Alloys
Relief angle0.000
Single or double sided insertDouble
Thickness0.2835
Width0.6102
