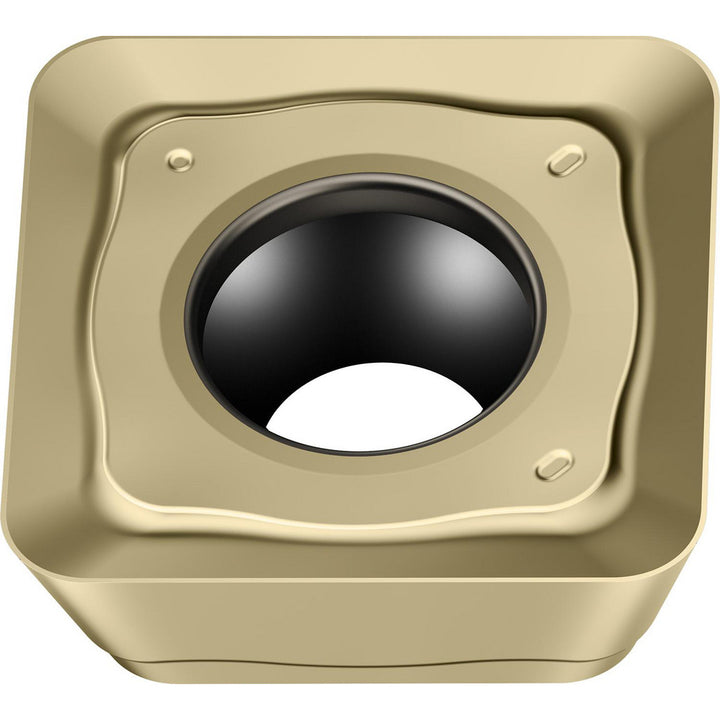

SPMT060304-F55 WSP45G Carbide Insert, Grade WSP45G, TiAlN/Al2O3/(ZrN) - Walter 7924352

Walter

SPMT060304-F55 WSP45G Carbide Insert, Grade WSP45G, TiAlN/Al2O3/(ZrN) - Walter 7924352

MFR# 7924352ISO/ANSI# SPMT060304-F55 WSP45GCat# SPMT060304-F55 WSP45GSeries SPMT

$14.15List $18.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeSquare
GradeWSP45G
MaterialCarbide
CoatingTiAlN/Al2O3/(ZrN)

Description

The Walter 7924352 is a SPMT060304-F55 WSP45G carbide indexable insert, grade WSP45G, TiAlN/Al2O3/(ZrN) coated. Suited for steel, stainless steel, super alloys.

Specifications

Chip breakerF55
Coating finishTiAlN/Al2O3/(ZrN)
Coating processPVD
Corner radius0.0157
Cutting directionNeutral
Cutting edge effective length0.2500
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeSquare
Insert size060304
Insert size code06
Insert styleSPMT
Iso codeSPMT060304-F55 WSP45G
Length in1/4
Manufacturers catalog numberSPMT060304-F55 WSP45G
Manufacturer gradeWSP45G
Maximum depth of cut0.2500
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Super Alloys
Relief angle11.000
Single or double sided insertSingle
Thickness0.1252
Width0.2500
