Walter

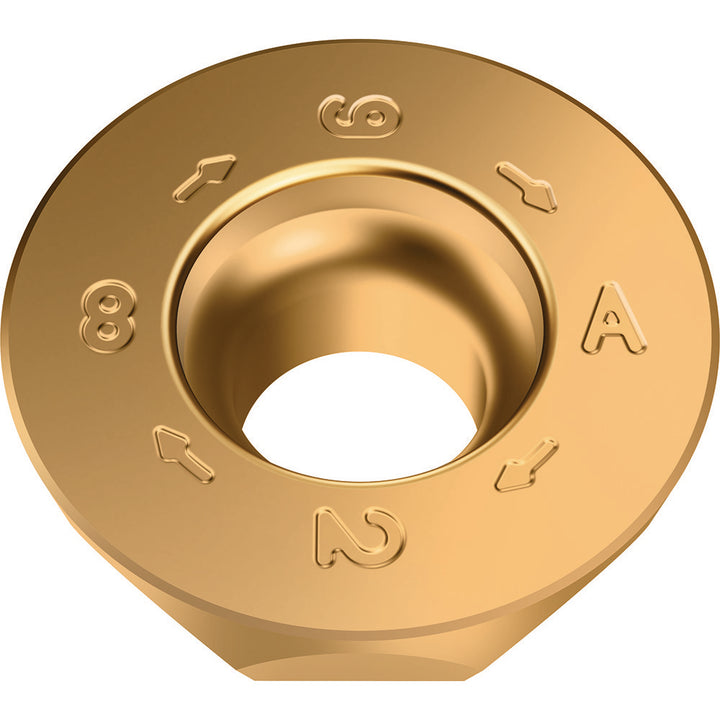

ODHX0605ZZR-A57 WHH15X Carbide Insert, Grade WHH15X, TiAlN/TiAlCrSiN - Walter 7960060
MFR# 7960060ISO/ANSI# ODHX0605ZZR-A57 WHH15XCat# ODHX0605ZZR-A57 WHH15XSeries ODHX
$41.60List $53.35
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeWHH15X
MaterialCarbide
CoatingTiAlN/TiAlCrSiN
Description
The Walter 7960060 is a ODHX0605ZZR-A57 WHH15X carbide indexable insert, grade WHH15X, TiAlN/TiAlCrSiN coated. Suited for hardened materials.
Specifications
Chip breakerA57
Coating finishTiAlN/TiAlCrSiN
Coating processPVD
Corner radius0.0315
Cutting directionRight Hand
Cutting edge effective length0.2591
Inscribed circle0.6252
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeOctagon
Insert size0605
Insert size code06
Insert styleODHX
Iso codeODHX0605ZZR-A57 WHH15X
Length0.2591
Manufacturers catalog numberODHX0605ZZR-A57 WHH15X
Manufacturer gradeWHH15X
Maximum depth of cut0.2591
Number of cutting edges1
Primary workpiece materialHardened Materials
Relief angle15.000
Secondary workpiece materialSteel; Cast Iron
Single or double sided insertSingle
Thickness0.2189
Width0.6251
