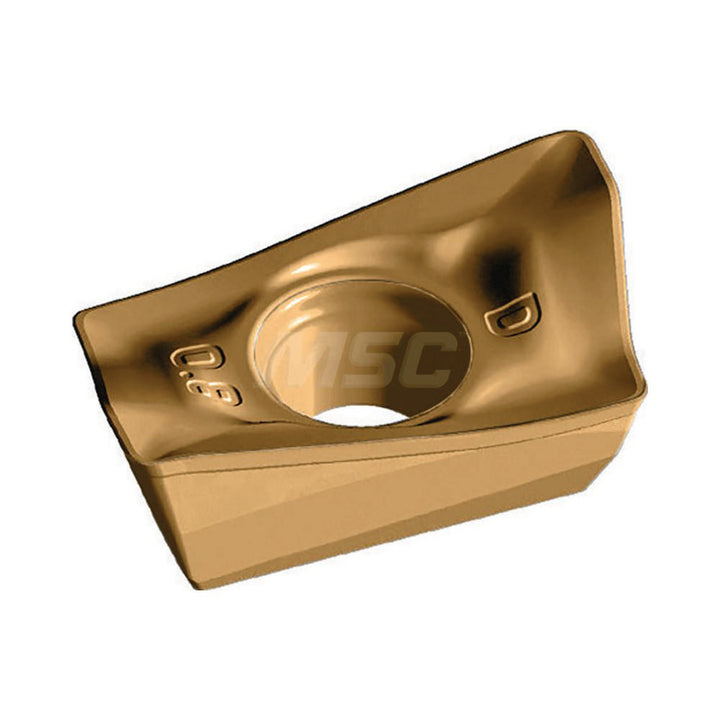

ADMT160632R-F56 WSP45G Solid Carbide Insert, Grade WSP45G, TiAlN - Walter 8112840
MFR# 8112840ISO/ANSI# ADMT160632R-F56 WSP45GCat# ADMT160632R-F56Series ADMT
$29.81List $38.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeWSP45G
MaterialSolid Carbide
CoatingTiAlN
Description
The Walter 8112840 is a ADMT160632R-F56 WSP45G solid carbide indexable insert, grade WSP45G, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeADMT160632R-F56 WSP45G
Chip breakerF56
Coating finishTiAlN
Coating processPVD
Corner radius0.1260
Cutter series compatibilityF2252
Cutting edge effective length0.5433
Cutting edge styleChamfered; Honed
Hole diameter0.1728
Included angle degree85
Inscribed circle0.4250
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160632
Insert styleADMT
Iso codeADMT160632R-F56 WSP45G
Length0.6890
Length range0.6500 to 0.7000
Manufacturers catalog numberADMT160632R-F56
Manufacturer gradeWSP45G
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M45; S45; N30
Maximum depth of cut0.6890
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle16
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2420
Thickness range0.2350 to 0.2500
Width0.4250
