Walter

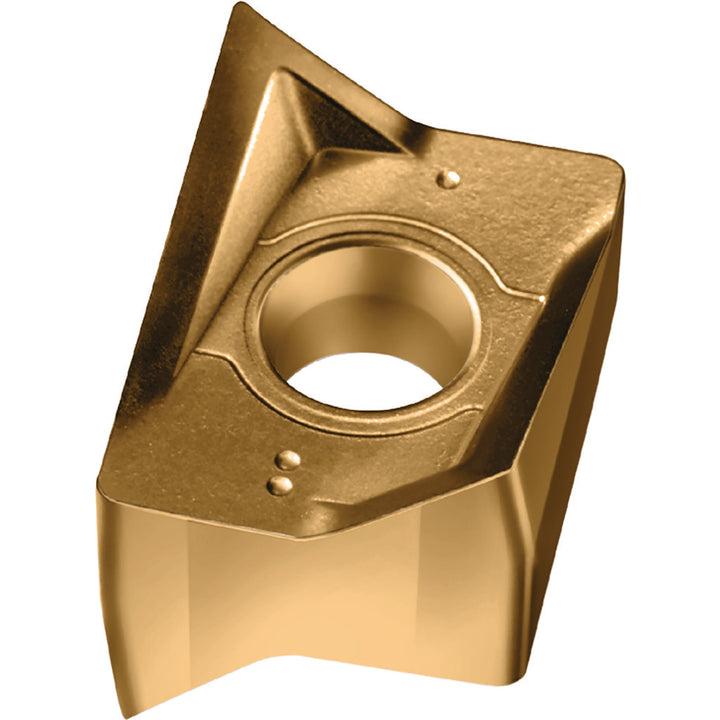

LNGX130720R-L55 WSP45G Solid Carbide Insert, Grade WSP45G, TiAlN - Walter 8112862
MFR# 8112862ISO/ANSI# LNGX130720R-L55 WSP45GCat# LNGX130720R-L55Series LNGX
$29.13List $37.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeWSP45G
MaterialSolid Carbide
CoatingTiAlN
Description
The Walter 8112862 is a LNGX130720R-L55 WSP45G solid carbide indexable insert, grade WSP45G, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNGX130720R-L55 WSP45G
Chip breakerL55
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF2010; F4041
Cutting edge effective length0.3937
Cutting edge styleChamfered; Honed
Hole diameter0.1728
Included angle degree90
Inscribed circle0.4330
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size13
Insert size code130720
Insert styleLNGX
Iso codeLNGX130720R-L55 WSP45G
Length0.5390
Length range0.5000 to 0.6000
Manufacturers catalog numberLNGX130720R-L55
Manufacturer gradeWSP45G
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M45; S45; N30
Maximum depth of cut0.5390
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle28
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.3050
Thickness range0.2500 to 0.3500
Width0.4330
