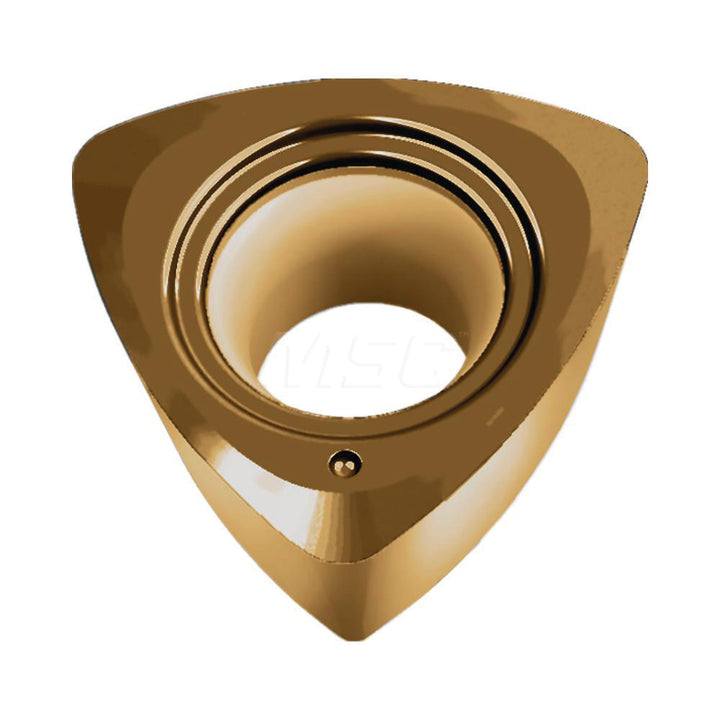

P26337R10 WSP45G Solid Carbide Insert, Grade WSP45G, TiAlN - Walter 8112891

Walter

P26337R10 WSP45G Solid Carbide Insert, Grade WSP45G, TiAlN - Walter 8112891

MFR# 8112891ISO/ANSI# P26337R10 WSP45GCat# P26337R10Series P2633

$23.07List $29.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeTrigon
GradeWSP45G
MaterialSolid Carbide
CoatingTiAlN

Description

The Walter 8112891 is a P26337R10 WSP45G solid carbide indexable insert, grade WSP45G, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeP26337R10 WSP45G
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityF2010; F2330
Cutting edge effective length0.5551
Cutting edge styleHoned
Hole diameter0.1098
Included angle degree90
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size10
Insert size codeR10
Insert styleP26337
Iso codeP26337R10 WSP45G
Length in17/64
Length range0.0000 to 0.3200
Manufacturers catalog numberP26337R10
Manufacturer gradeWSP45G
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeP45; M45; S45; N30
Maximum depth of cut0.5551
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle14.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in17/64
