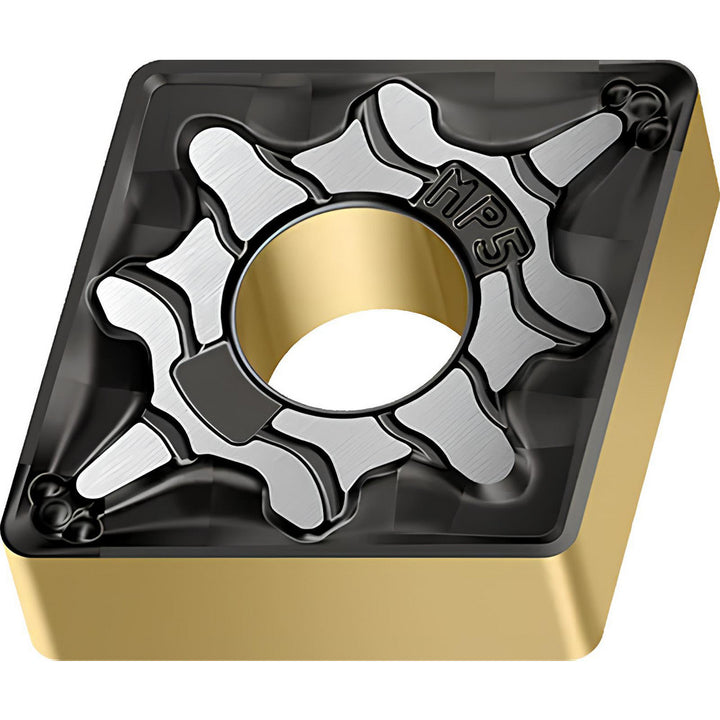

CNMG120404-MP5 WPP30G Carbide Insert, Grade WPP30G, Al2O3 - Walter 8115567

Walter

CNMG120404-MP5 WPP30G Carbide Insert, Grade WPP30G, Al2O3 - Walter 8115567

MFR# 8115567ISO/ANSI# CNMG431-MP5 WPP30GSeries CNMG-MP5

$19.03List $24.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWPP30G
MaterialCarbide
CoatingAl2O3

Description

The Walter 8115567 is a CNMG120404-MP5 WPP30G carbide indexable insert, grade WPP30G, Al2O3 coated. Suited for steel.

Specifications

Chip breakerMP5
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG431-MP5 WPP30G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404-MP5 WPP30G
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number8115567
Manufacturer gradeWPP30G
Material gradeP30; K40; M20
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
