Walter

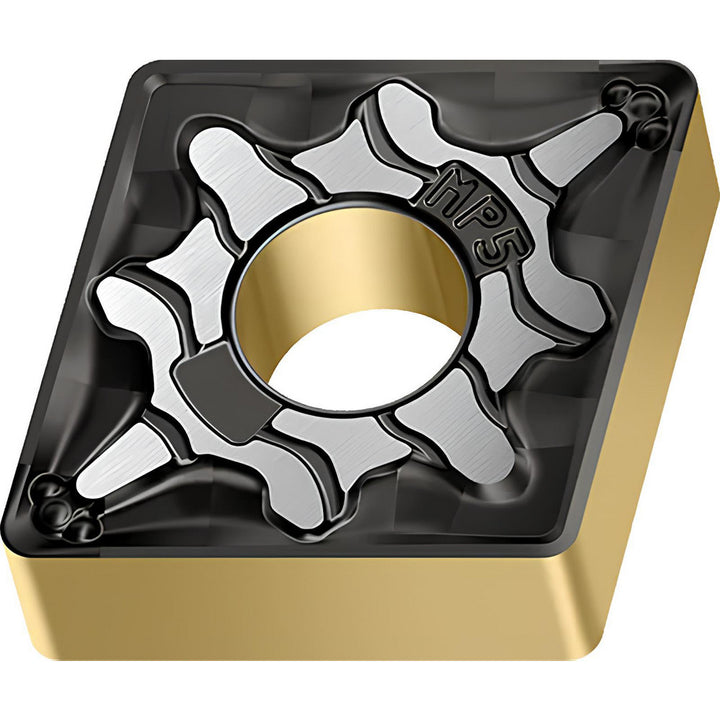

CNMG120408-MP5 WPP10G Carbide Insert, Grade WPP10G, Al2O3 - Walter 8115568
MFR# 8115568ISO/ANSI# CNMG432-MP5 WPP10GSeries CNMG-MP5
$22.87List $28.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeWPP10G
MaterialCarbide
CoatingAl2O3
Description
The Walter 8115568 is a CNMG120408-MP5 WPP10G carbide indexable insert, grade WPP10G, Al2O3 coated. Suited for steel.
Specifications
Chip breakerMP5
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberCNMG432-MP5 WPP10G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-MP5 WPP10G
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number8115568
Manufacturer gradeWPP10G
Material gradeP10
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.508
Wiper edgeNo
