Walter

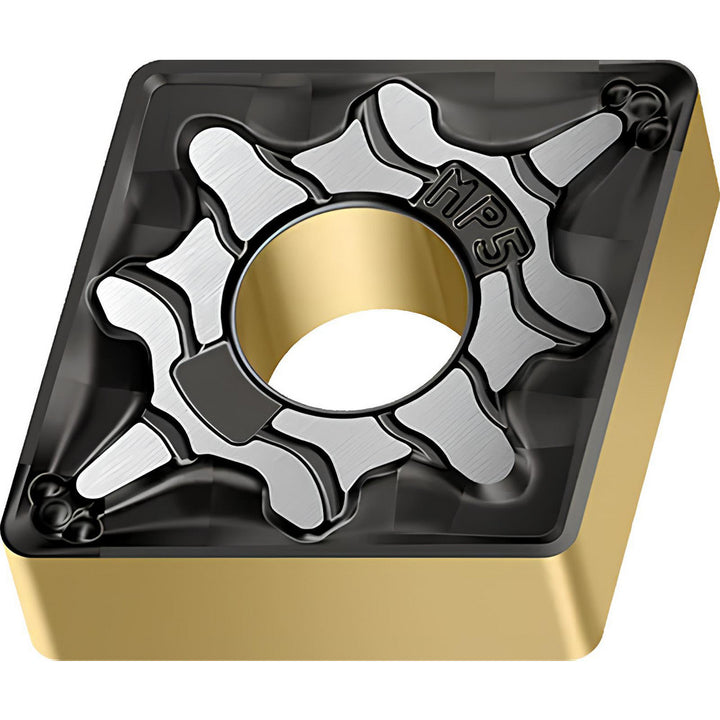

CNMG120408-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115569
MFR# 8115569ISO/ANSI# CNMG432-MP5 WPP20GSeries CNMG-MP5
$19.03List $24.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWPP20G
MaterialCarbide
CoatingTiCN
Description
The Walter 8115569 is a CNMG120408-MP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.
Specifications
Chip breakerMP5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG432-MP5 WPP20G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-MP5 WPP20G
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number8115569
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
