Walter

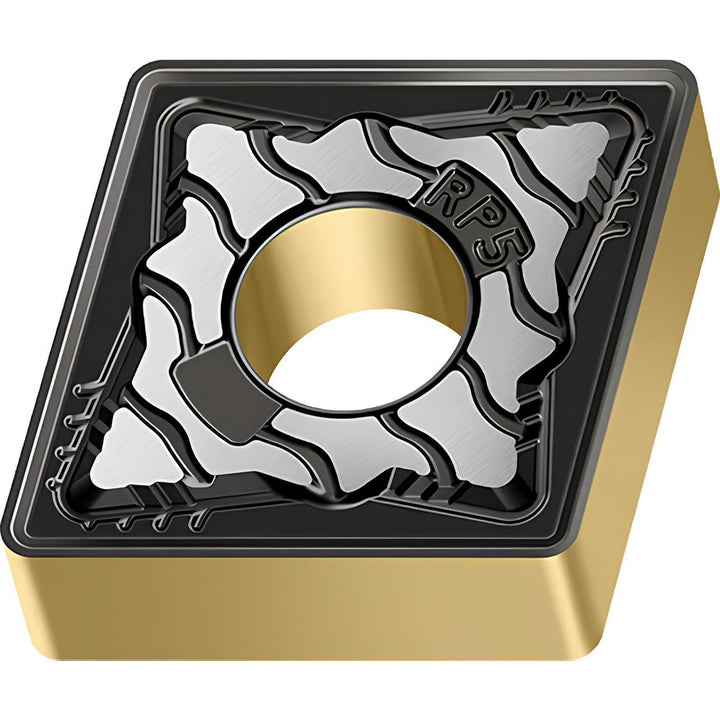

CNMG120408-RP5 WPP30G Carbide Insert, Grade WPP30G, Al2O3 - Walter 8115580
MFR# 8115580ISO/ANSI# CNMG120408Series CNMG-RP5
$19.03List $24.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeWPP30G
MaterialCarbide
CoatingAl2O3
Description
The Walter 8115580 is a CNMG120408-RP5 WPP30G carbide indexable insert, grade WPP30G, Al2O3 coated. Suited for steel.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerRP5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberCNMG432-RP5 WPP30G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-RP5 WPP30G
Iso insert codeCNMG120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number8115580
Manufacturer gradeWPP30G
Material gradeP30; K40; M20
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.5080
Wiper edgeNo
