Walter

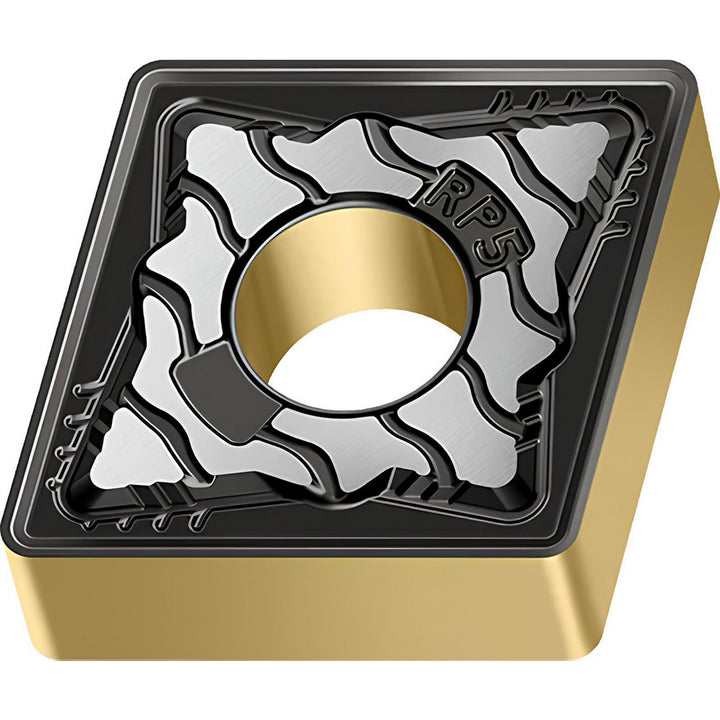

CNMG120412-RP5 WPP10G Carbide Insert, Grade WPP10G, Al2O3 - Walter 8115581
MFR# 8115581ISO/ANSI# CNMG433-RP5 WPP10GSeries CNMG-RP5
$19.03List $24.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWPP10G
MaterialCarbide
CoatingAl2O3
Description
The Walter 8115581 is a CNMG120412-RP5 WPP10G carbide indexable insert, grade WPP10G, Al2O3 coated. Suited for steel.
Specifications
Chip breakerRP5
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG433-RP5 WPP10G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412-RP5 WPP10G
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number8115581
Manufacturer gradeWPP10G
Material gradeP10
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
