Walter

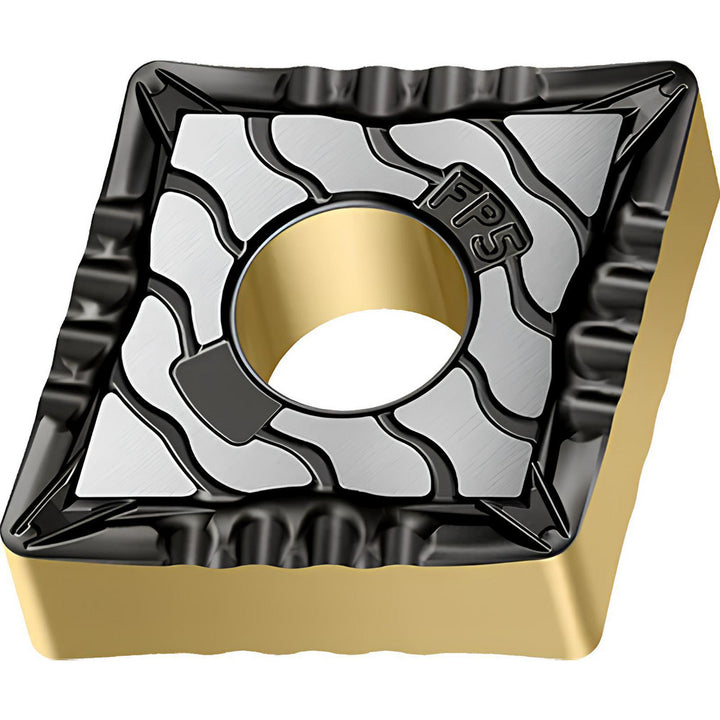

CNMG120408-FP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115631
MFR# 8115631ISO/ANSI# CNMG120408Series CNMG-FP5
$17.84List $22.48
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeWPP20G
MaterialCarbide
CoatingTiCN
Description
The Walter 8115631 is a CNMG120408-FP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCNMG432
Ansi size code432
Chip breakerFP5
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberCNMG432-FP5 WPP20G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-FP5 WPP20G
Iso insert codeCNMG120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number8115631
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle16
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.5080
Wiper edgeNo
