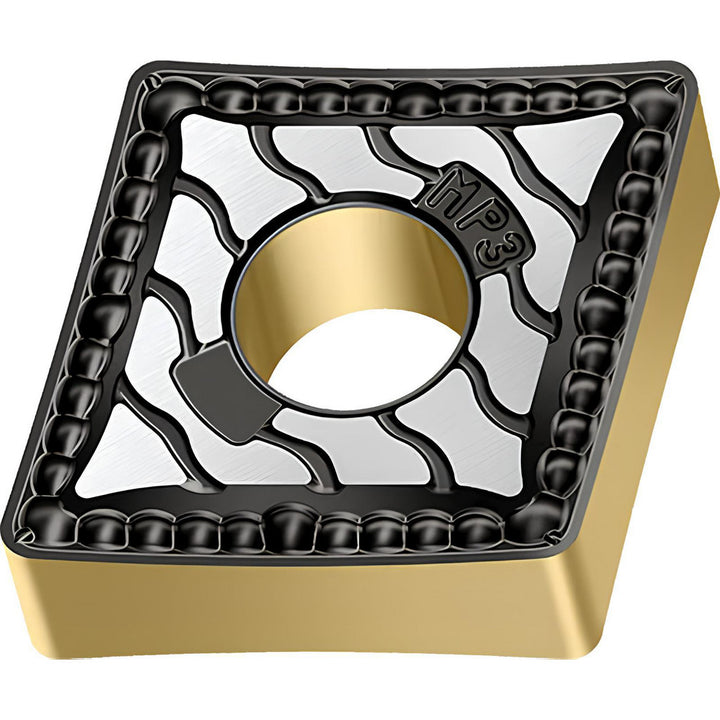

CNMG120408-MP3 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115644

Walter

CNMG120408-MP3 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115644

MFR# 8115644ISO/ANSI# CNMG432-MP3 WPP20GSeries CNMG-MP3

$19.03List $24.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeWPP20G
MaterialCarbide
CoatingTiCN

Description

The Walter 8115644 is a CNMG120408-MP3 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.

Specifications

Chip breakerMP3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG432-MP3 WPP20G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-MP3 WPP20G
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number8115644
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle22.5
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.5080in
Wiper edgeNo
