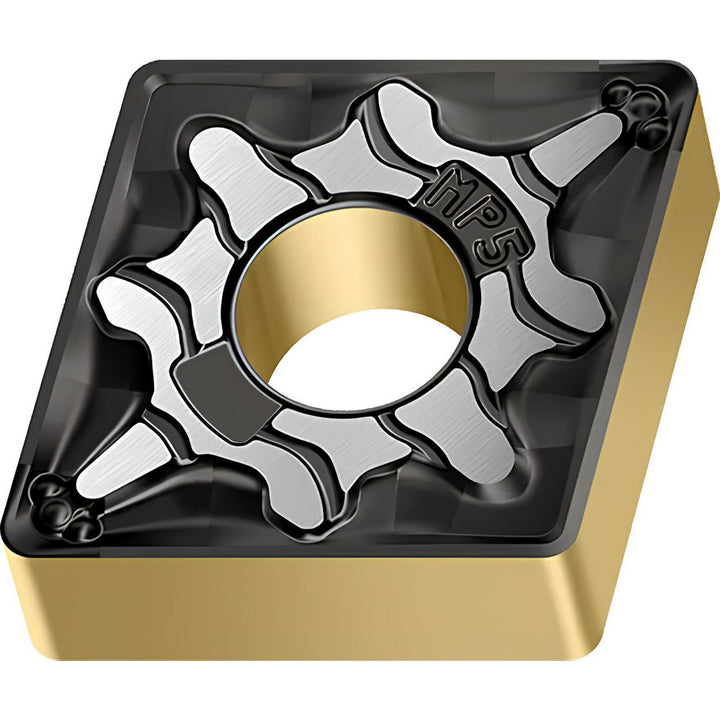

CNMG160608-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115653

Walter

CNMG160608-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115653

MFR# 8115653ISO/ANSI# CNMG160608Series CNMG-MP5

$27.88List $35.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeWPP20G
MaterialCarbide
CoatingTiCN

Description

The Walter 8115653 is a CNMG160608-MP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCNMG542
Ansi size code542
Chip breakerMP5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2500
Included angle80
Industry standard numberCNMG542-MP5 WPP20G
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608-MP5 WPP20G
Iso insert codeCNMG160608
Iso size code160608
Lead angle80
Length range0.6000 - 0.6500
Manufacturers catalog number8115653
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.6350
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6346
Wiper edgeNo
