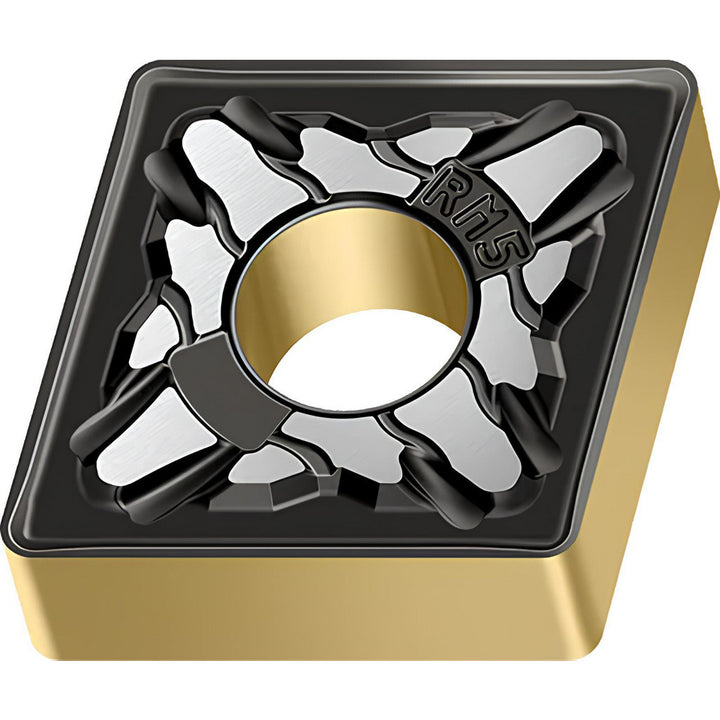

CNMG120412-RM5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115683

Walter

CNMG120412-RM5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115683

MFR# 8115683ISO/ANSI# CNMG120412Series CNMG-RM5

$17.53List $22.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeWPP20G
MaterialCarbide
CoatingTiCN

Description

The Walter 8115683 is a CNMG120412-RM5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCNMG433
Ansi size code433
Chip breakerRM5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberCNMG433-RM5 WPP20G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412-RM5 WPP20G
Iso insert codeCNMG120412
Iso size code120412
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number8115683
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.5080
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle20
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.5080
Wiper edgeNo
