Walter

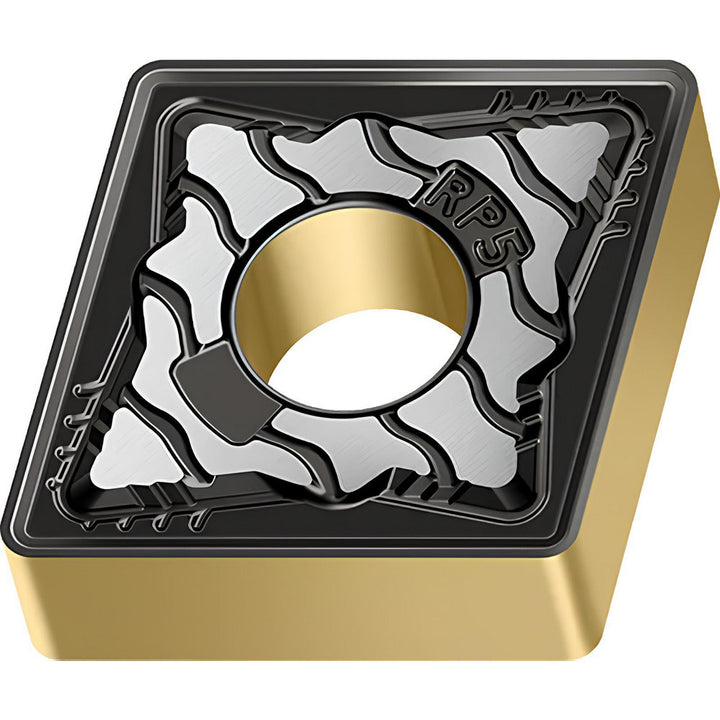

CNMG160612-RP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115691
MFR# 8115691ISO/ANSI# CNMG543-RP5 WPP20GSeries CNMG-RP5
$30.22List $38.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeWPP20G
MaterialCarbide
CoatingTiCN
Description
The Walter 8115691 is a CNMG160612-RP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.
Specifications
Chip breakerRP5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG543-RP5 WPP20G
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond 80
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612-RP5 WPP20G
Lead angle80degree
Length range0.6000 - 0.6500
Manufacturers catalog number8115691
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.6350
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.6346in
Wiper edgeNo
