Walter

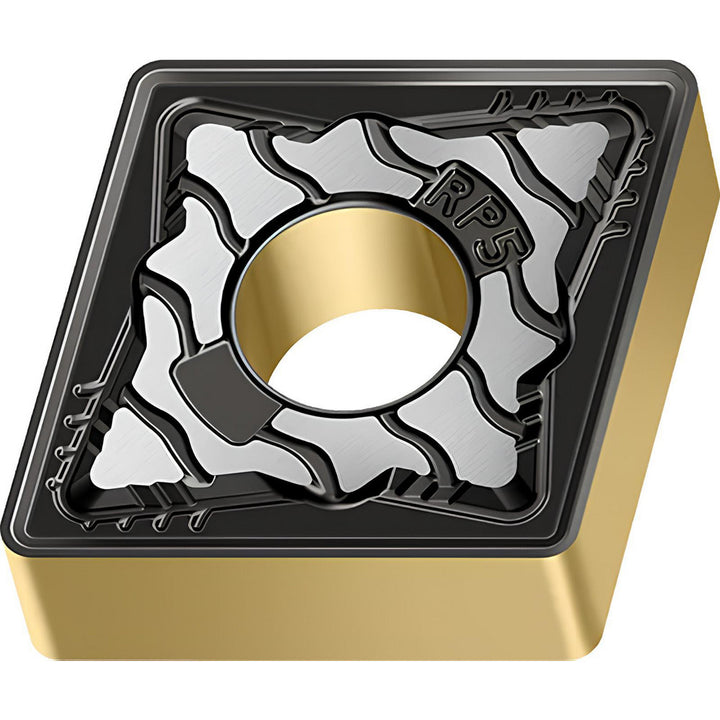

CNMG190608-RP5 WPP30G Carbide Insert, Grade WPP30G, Al2O3 - Walter 8115700
MFR# 8115700ISO/ANSI# CNMG190608Series CNMG-RP5
$42.19List $54.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeWPP30G
MaterialCarbide
CoatingAl2O3
Description
The Walter 8115700 is a CNMG190608-RP5 WPP30G carbide indexable insert, grade WPP30G, Al2O3 coated. Suited for steel.
Specifications
Ansi insert codeCNMG642
Ansi size code642
Chip breakerRP5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.3120
Included angle80
Industry standard numberCNMG642-RP5 WPP30G
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code642
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190608-RP5 WPP30G
Iso insert codeCNMG190608
Iso size code190608
Lead angle80
Length range0.7000 - 10.0000
Manufacturers catalog number8115700
Manufacturer gradeWPP30G
Material gradeP30; K40; M20
Maximum depth of cut0.7620
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.7616
Wiper edgeNo
