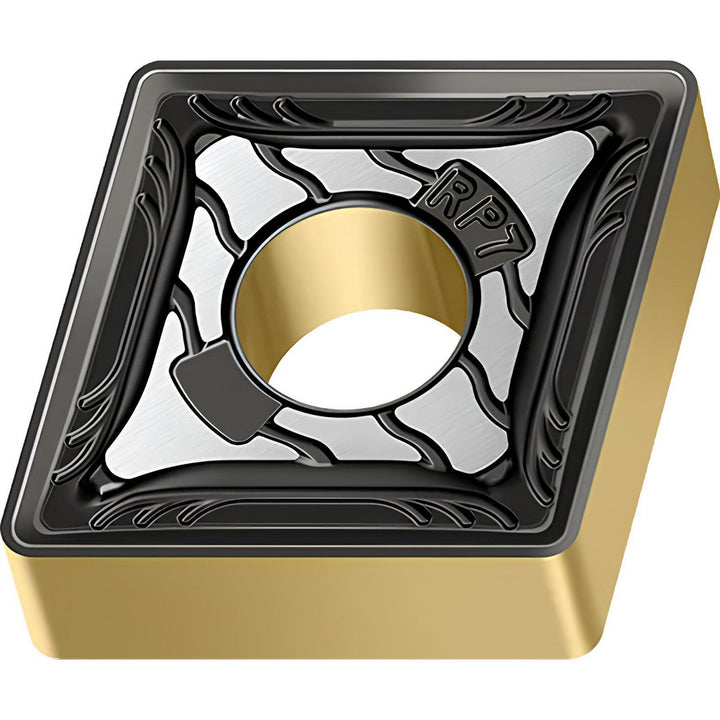

CNMG190612-RP7 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115723

Walter

CNMG190612-RP7 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115723

MFR# 8115723ISO/ANSI# CNMG190612Series CNMG-RP7

$42.19List $54.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeWPP20G
MaterialCarbide
CoatingTiCN

Description

The Walter 8115723 is a CNMG190612-RP7 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.

Specifications

Ansi insert codeCNMG643
Ansi size code643
Chip breakerRP7
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.3120
Included angle80
Industry standard numberCNMG643-RP7 WPP20G
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190612-RP7 WPP20G
Iso insert codeCNMG190612
Iso size code190612
Lead angle80
Length range0.7000 - 10.0000
Manufacturers catalog number8115723
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.7620
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.7616
Wiper edgeNo
