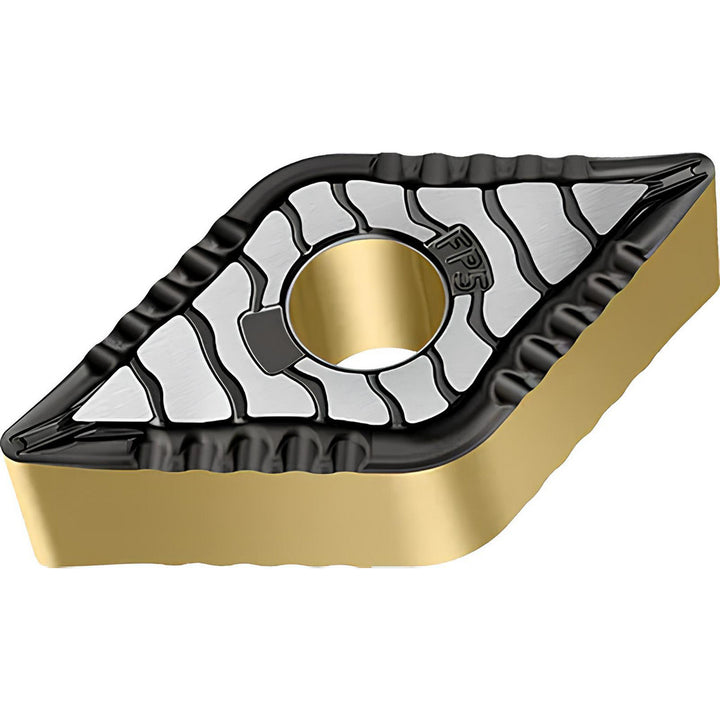

DNMG150408-FP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115744

Walter

DNMG150408-FP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115744

MFR# 8115744ISO/ANSI# DNMG150408Series DNMG-FP5

$22.32List $28.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeWPP20G
MaterialCarbide
CoatingTiCN

Description

The Walter 8115744 is a DNMG150408-FP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.

Specifications

Ansi insert codeDNMG432
Ansi size code432
Chip breakerFP5
Chip breaker operationFinishing
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle55
Industry standard numberDNMG432-FP5 WPP20G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-FP5 WPP20G
Iso insert codeDNMG150408
Iso size code150408
Lead angle55
Length range0.6000 - 0.6500
Manufacturers catalog number8115744
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.6100
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle16
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
