Walter

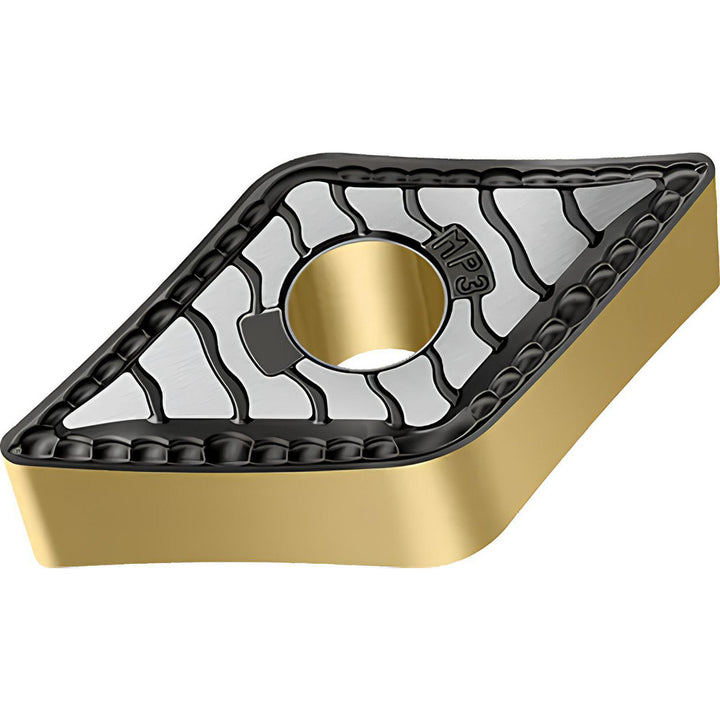

DNMG150404-MP3 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115769
MFR# 8115769ISO/ANSI# DNMG431-MP3 WPP20GSeries DNMG-MP3
$29.14List $36.72
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeWPP20G
MaterialCarbide
CoatingTiCN
Description
The Walter 8115769 is a DNMG150404-MP3 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.
Specifications
Chip breakerMP3
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG431-MP3 WPP20G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404-MP3 WPP20G
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number8115769
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.6100
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle22.5
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
