Walter

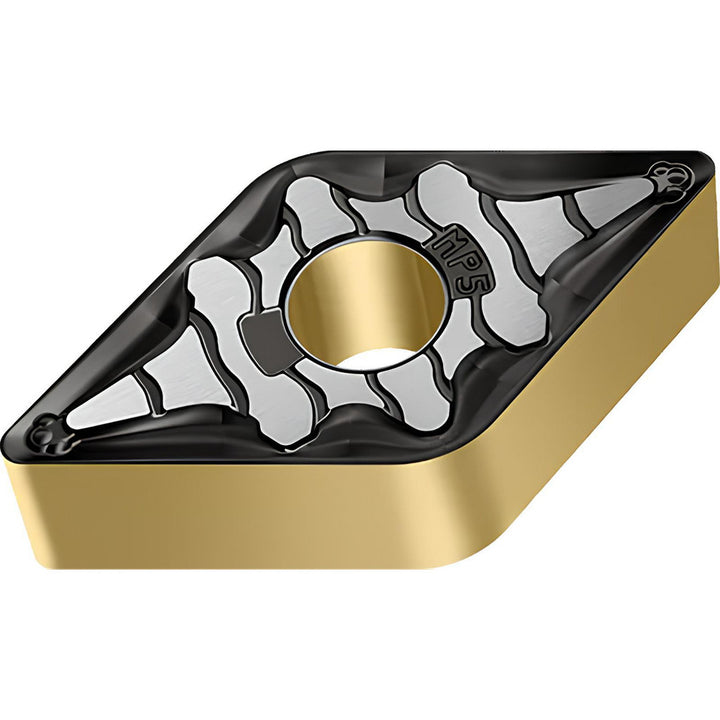

DNMG150408-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115792
MFR# 8115792ISO/ANSI# DNMG150408Series DNMG-MP5
$24.17List $31.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeWPP20G
MaterialCarbide
CoatingTiCN
Description
The Walter 8115792 is a DNMG150408-MP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.
Specifications
Ansi insert codeDNMG432
Ansi size code432
Chip breakerMP5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle55
Industry standard numberDNMG432-MP5 WPP20G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-MP5 WPP20G
Iso insert codeDNMG150408
Iso size code150408
Lead angle55
Length range0.6000 - 0.6500
Manufacturers catalog number8115792
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.6100
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
