Walter

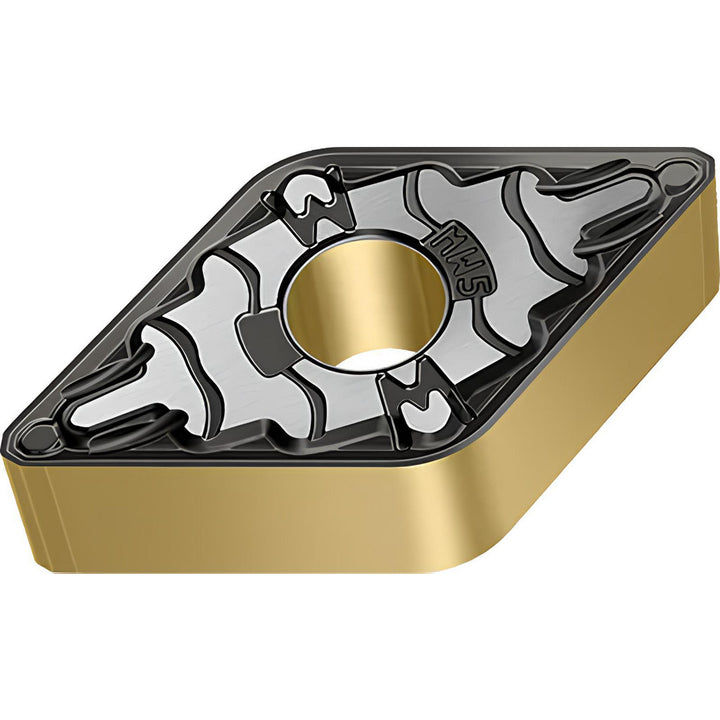

DNMG150408-MW5 WPP10G Carbide Insert, Grade WPP10G, Al2O3 - Walter 8115826
MFR# 8115826ISO/ANSI# DNMG432-MW5 WPP10GSeries DNMG-MW5
$27.70List $35.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeWPP10G
MaterialCarbide
CoatingAl2O3
Description
The Walter 8115826 is a DNMG150408-MW5 WPP10G carbide indexable insert, grade WPP10G, Al2O3 coated. Suited for steel.
Specifications
Chip breakerMW5
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG432-MW5 WPP10G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6104
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-MW5 WPP10G
Lead angle55degree
Length range0.6000 - 0.6500
Manufacturers catalog number8115826
Manufacturer gradeWPP10G
Material gradeP10
Maximum depth of cut0.6100
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle16
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeYes
