Walter
WNMG060412-MP5 WPP10G Carbide Insert, Grade WPP10G, Al2O3 - Walter 8115892
MFR# 8115892ISO/ANSI# WNMG333-MP5 WPP10GSeries WNMG-MP5
$15.76List $19.87
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTrigon
GradeWPP10G
MaterialCarbide
CoatingAl2O3
Description

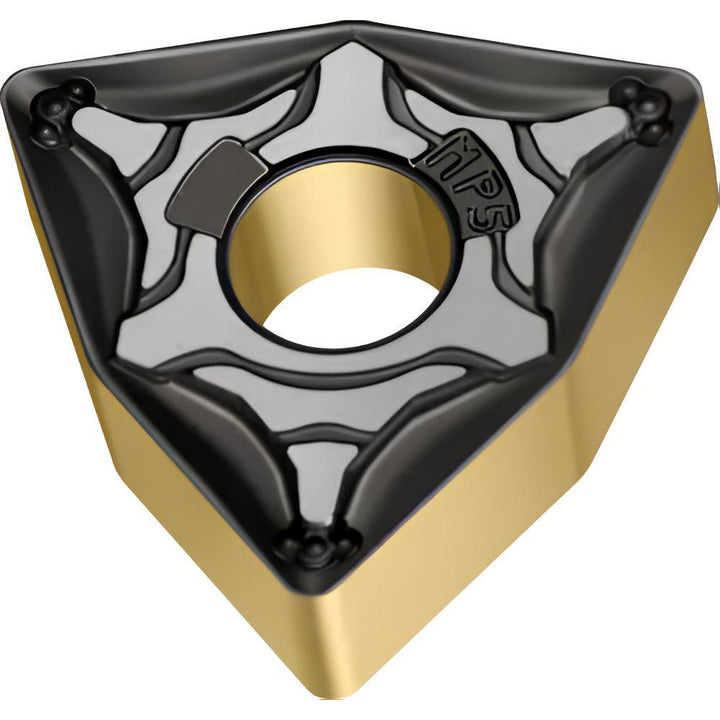

The Walter 8115892 is a WNMG060412-MP5 WPP10G carbide indexable insert, grade WPP10G, Al2O3 coated. Suited for steel.
Specifications
Chip breakerMP5
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80
Industry standard numberWNMG333-MP5 WPP10G
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5140
Insert materialCarbide
Insert shapeTrigon
Insert size code333
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG060412-MP5 WPP10G
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number8115892
Manufacturer gradeWPP10G
Material gradeP10
Maximum depth of cut0.2570
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.514
Wiper edgeNo
