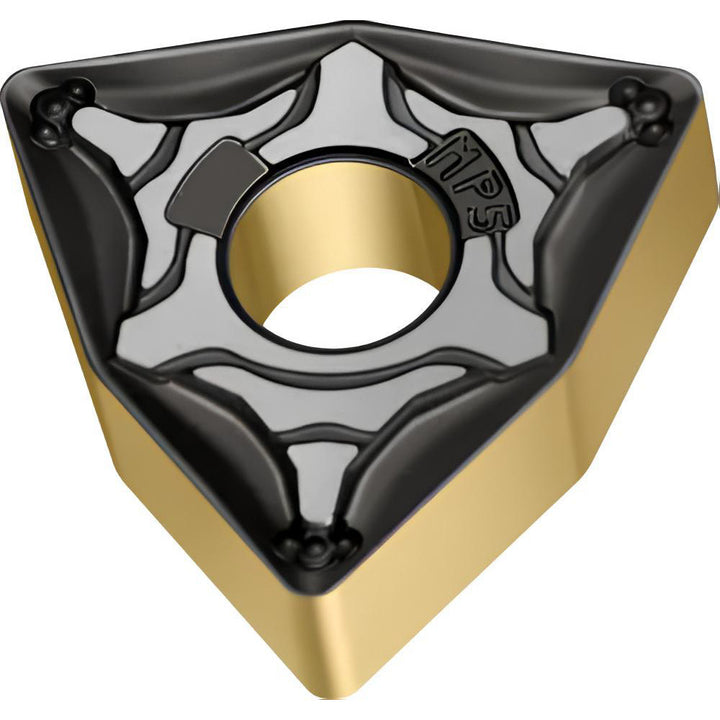

WNMG080404-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115895

Walter

WNMG080404-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115895

MFR# 8115895ISO/ANSI# WNMG080404Series WNMG-MP5

$21.14List $27.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeWPP20G
MaterialCarbide
CoatingTiCN

Description

The Walter 8115895 is a WNMG080404-MP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.

Specifications

Ansi insert codeWNMG431
Ansi size code431
Chip breakerMP5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberWNMG431-MP5 WPP20G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404-MP5 WPP20G
Iso insert codeWNMG080404
Iso size code080404
Lead angle80
Length range0.6500 - 0.7000
Manufacturers catalog number8115895
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.3420
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6840
Wiper edgeNo
