Walter

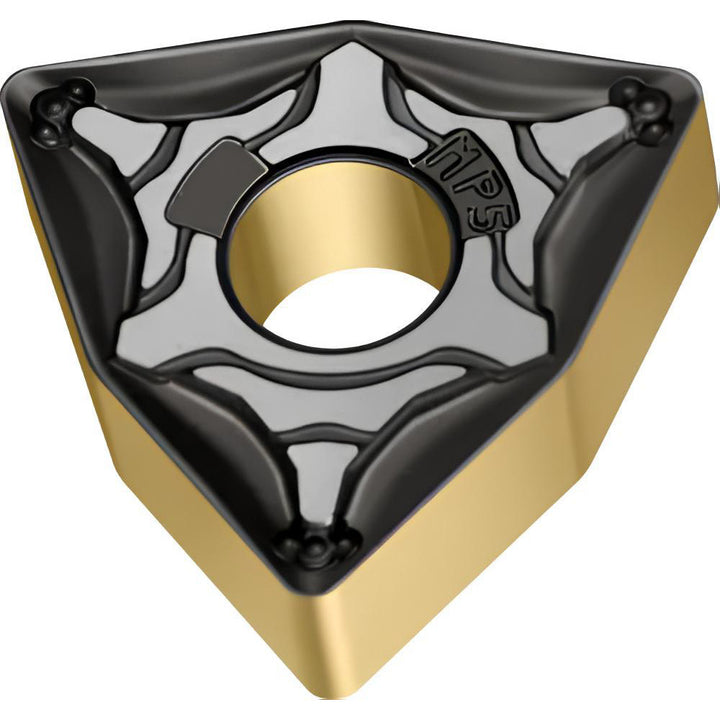

WNMG080404-MP5 WPP30G Carbide Insert, Grade WPP30G, Al2O3 - Walter 8115896
MFR# 8115896ISO/ANSI# WNMG431-MP5 WPP30GSeries WNMG-MP5
$21.14List $27.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeWPP30G
MaterialCarbide
CoatingAl2O3
Description
The Walter 8115896 is a WNMG080404-MP5 WPP30G carbide indexable insert, grade WPP30G, Al2O3 coated. Suited for steel.
Specifications
Chip breakerMP5
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberWNMG431-MP5 WPP30G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080404-MP5 WPP30G
Lead angle80
Length range0.6500 - 0.7000
Manufacturers catalog number8115896
Manufacturer gradeWPP30G
Material gradeP30; K40; M20
Maximum depth of cut0.3420
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.684
Wiper edgeNo
