Walter

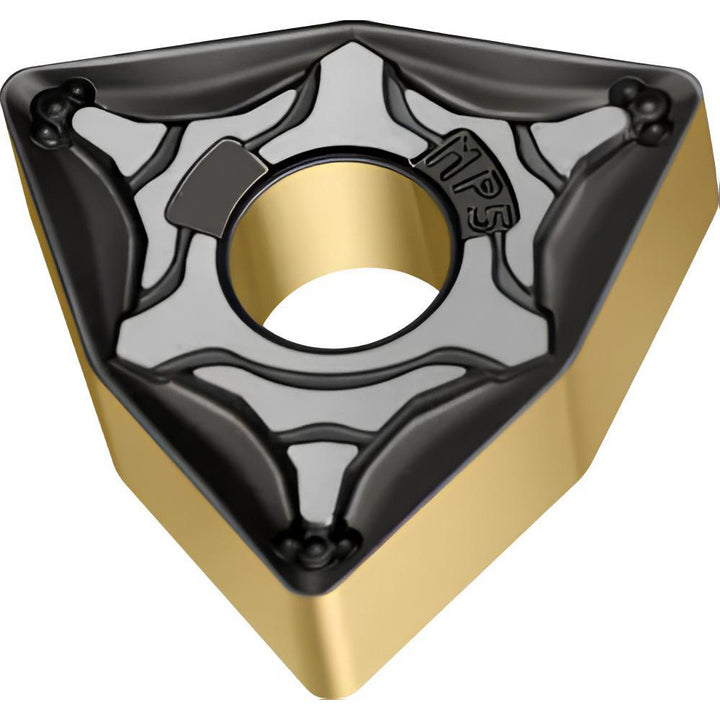

WNMG080408-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115898
MFR# 8115898ISO/ANSI# WNMG432-MP5 WPP20GSeries WNMG-MP5
$21.14List $27.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeWPP20G
MaterialCarbide
CoatingTiCN
Description
The Walter 8115898 is a WNMG080408-MP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.
Specifications
Chip breakerMP5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberWNMG432-MP5 WPP20G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-MP5 WPP20G
Lead angle80
Length range0.6500 - 0.7000
Manufacturers catalog number8115898
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.3420
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.684
Wiper edgeNo
