Walter

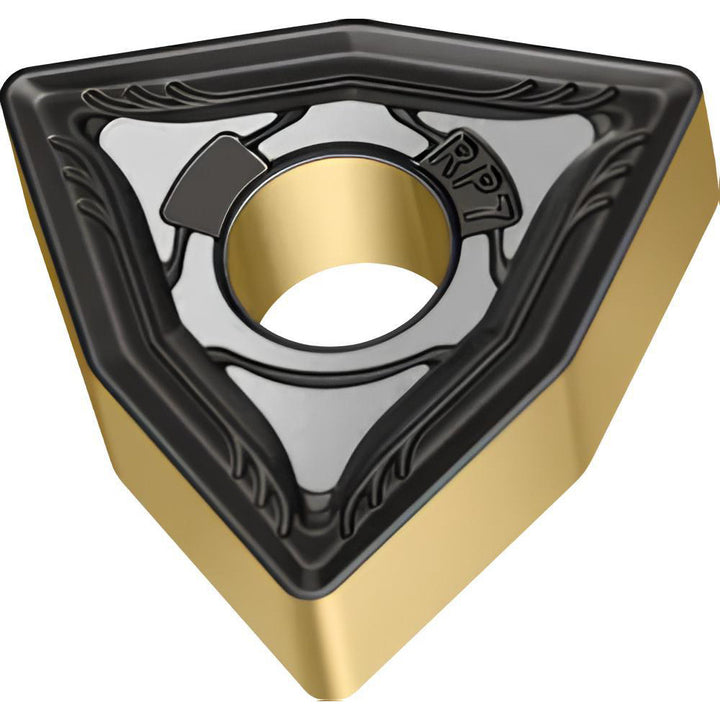

WNMG080412-RP7 WPP10G Carbide Insert, Grade WPP10G, Al2O3 - Walter 8115949
MFR# 8115949ISO/ANSI# WNMG433-RP7 WPP10GSeries WNMG-RP7
$21.14List $27.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeWPP10G
MaterialCarbide
CoatingAl2O3
Description
The Walter 8115949 is a WNMG080412-RP7 WPP10G carbide indexable insert, grade WPP10G, Al2O3 coated. Suited for steel.
Specifications
Chip breakerRP7
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberWNMG433-RP7 WPP10G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6840
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080412-RP7 WPP10G
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number8115949
Manufacturer gradeWPP10G
Material gradeP10
Maximum depth of cut0.3420
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle18
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.6840in
Wiper edgeNo
