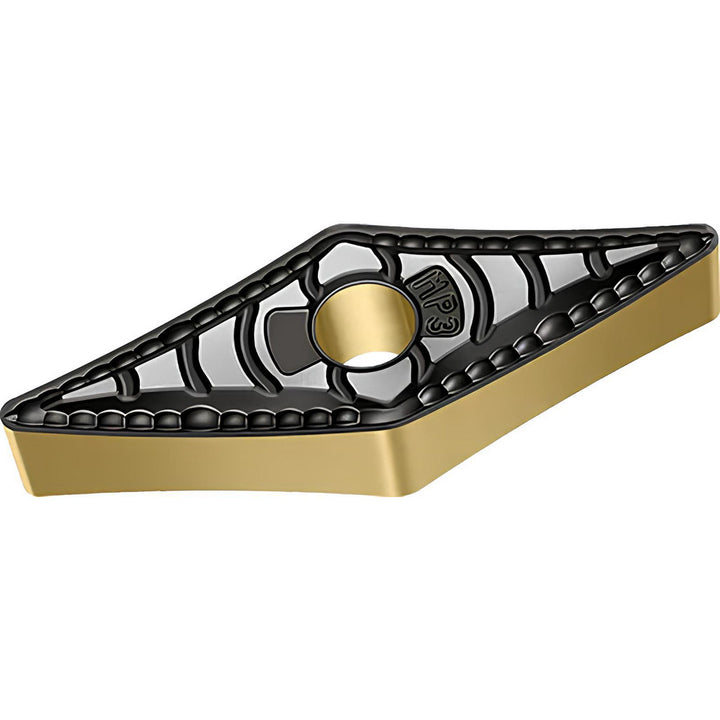

VNMG160408-MP3 WPP30G Carbide Insert, Grade WPP30G, Al2O3 - Walter 8115966

Walter

VNMG160408-MP3 WPP30G Carbide Insert, Grade WPP30G, Al2O3 - Walter 8115966

MFR# 8115966ISO/ANSI# VNMG332-MP3 WPP30GSeries VNMG-MP3

$32.00List $41.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeWPP30G
MaterialCarbide
CoatingAl2O3

Description

The Walter 8115966 is a VNMG160408-MP3 WPP30G carbide indexable insert, grade WPP30G, Al2O3 coated. Suited for steel.

Specifications

Chip breakerMP3
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNMG332-MP3 WPP30G
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408-MP3 WPP30G
Lead angle35
Length range0.6500 - 0.7000
Manufacturers catalog number8115966
Manufacturer gradeWPP30G
Material gradeP30; K40; M20
Maximum depth of cut0.6540
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle22.5
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
