Walter

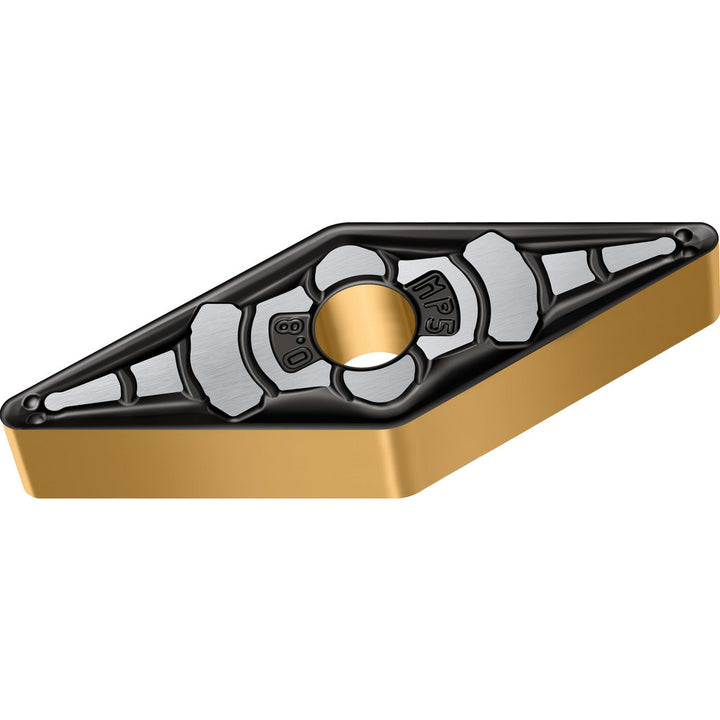

VNMG160404-MP5 WPP10G Carbide Insert, Grade WPP10G, Al2O3 - Walter 8115969
MFR# 8115969ISO/ANSI# VNMG331-MP5 WPP10GSeries VNMG-MP5
$34.69List $44.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeWPP10G
MaterialCarbide
CoatingAl2O3
Description
The Walter 8115969 is a VNMG160404-MP5 WPP10G carbide indexable insert, grade WPP10G, Al2O3 coated. Suited for steel.
Specifications
Chip breakerMP5
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNMG331-MP5 WPP10G
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404-MP5 WPP10G
Lead angle35
Length range0.6500 - 0.7000
Manufacturers catalog number8115969
Manufacturer gradeWPP10G
Material gradeP10
Maximum depth of cut0.6540
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
