Walter

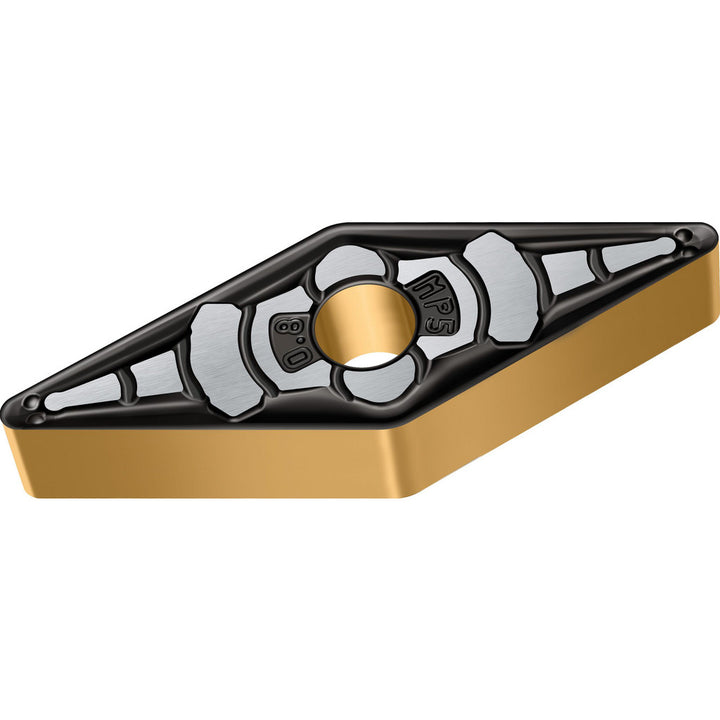

VNMG160404-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115970
MFR# 8115970ISO/ANSI# VNMG160404Series VNMG-MP5
$41.84List $52.72
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeWPP20G
MaterialCarbide
CoatingTiCN
Description
The Walter 8115970 is a VNMG160404-MP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.
Specifications
Ansi insert codeVNMG331
Ansi size code331
Chip breakerMP5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNMG331-MP5 WPP20G
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6540
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404-MP5 WPP20G
Iso insert codeVNMG160404
Iso size code160404
Lead angle35
Length range0.6500 - 0.7000
Manufacturers catalog number8115970
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.6540
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
