Walter

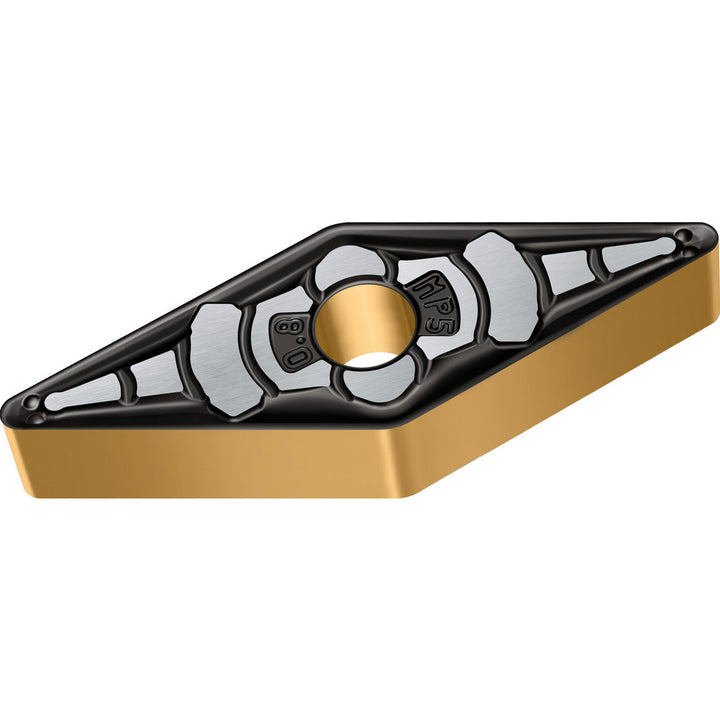

VNMG220408-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8115979
MFR# 8115979ISO/ANSI# VNMG432-MP5 WPP20GSeries VNMG-MP5
$45.22List $58.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 35
GradeWPP20G
MaterialCarbide
CoatingTiCN
Description
The Walter 8115979 is a VNMG220408-MP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.
Specifications
Chip breakerMP5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle35degree
Industry standard numberVNMG432-MP5 WPP20G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8720
Insert materialCarbide
Insert shapeDiamond 35
Insert size code432
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG220408-MP5 WPP20G
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number8115979
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.8720
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
