Walter

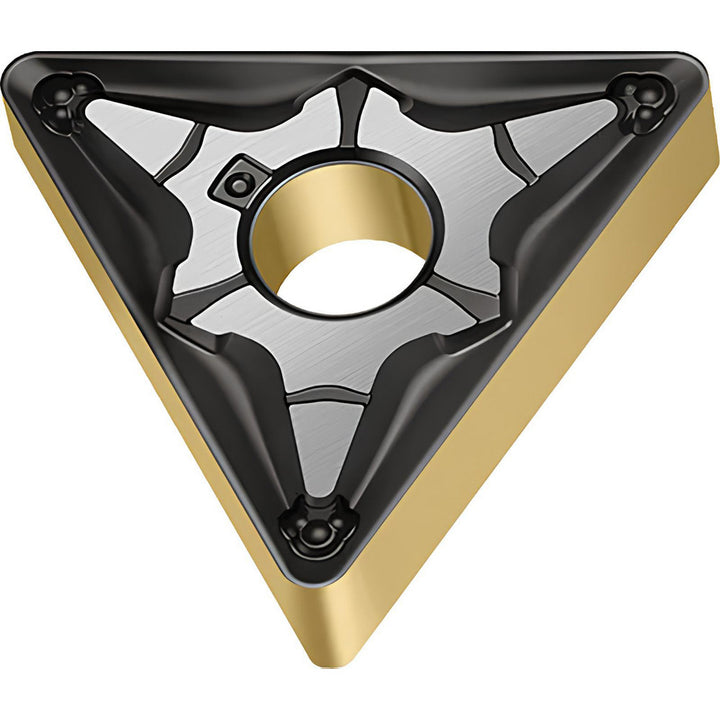

TNMG160308-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8116010
MFR# 8116010ISO/ANSI# TNMG160308Series TNMG-MP5
$16.68List $21.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeWPP20G
MaterialCarbide
CoatingTiCN
Description
The Walter 8116010 is a TNMG160308-MP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.
Specifications
Ansi insert codeTNMG322
Ansi size code322
Chip breakerMP5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1500
Included angle60
Industry standard numberTNMG322-MP5 WPP20G
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6500
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTNMG
Insert thickness in1/8
Iso codeTNMG160308-MP5 WPP20G
Iso insert codeTNMG160308
Iso size code160308
Lead angle60
Length range0.6500 - 0.7000
Manufacturers catalog number8116010
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.6500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.6500
Wiper edgeNo
