Walter

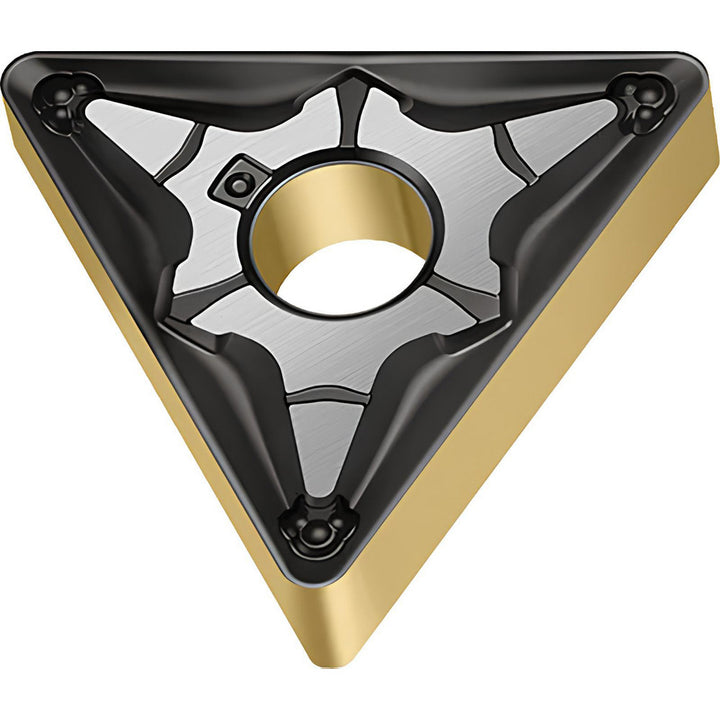

TNMG220404-MP5 WPP10G Carbide Insert, Grade WPP10G, Al2O3 - Walter 8116020
MFR# 8116020ISO/ANSI# TNMG431-MP5 WPP10GSeries TNMG-MP5
$23.15List $29.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeWPP10G
MaterialCarbide
CoatingAl2O3
Description
The Walter 8116020 is a TNMG220404-MP5 WPP10G carbide indexable insert, grade WPP10G, Al2O3 coated. Suited for steel.
Specifications
Chip breakerMP5
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle60
Industry standard numberTNMG431-MP5 WPP10G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialCarbide
Insert shapeTriangle
Insert size code431
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220404-MP5 WPP10G
Lead angle60
Length range0.7000 - 10.0000
Manufacturers catalog number8116020
Manufacturer gradeWPP10G
Material gradeP10
Maximum depth of cut0.8660
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.866
Wiper edgeNo
