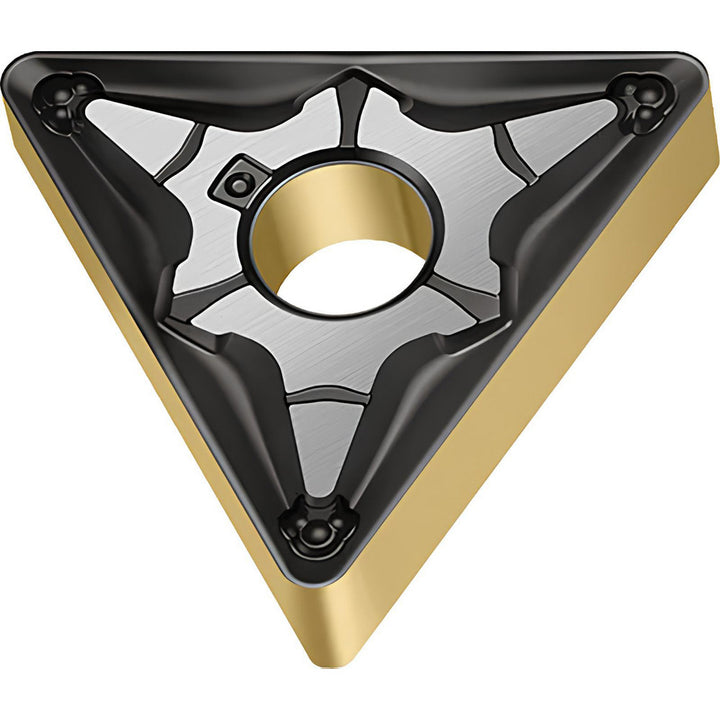

TNMG220404-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8116021

Walter

TNMG220404-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8116021

MFR# 8116021ISO/ANSI# TNMG431-MP5 WPP20GSeries TNMG-MP5

$23.15List $29.70 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeWPP20G
MaterialCarbide
CoatingTiCN

Description

The Walter 8116021 is a TNMG220404-MP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.

Specifications

Ansi size code431
Chip breakerMP5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2030
Included angle60
Industry standard numberTNMG431-MP5 WPP20G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialCarbide
Insert shapeT - Triangle
Insert size code431
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220404-MP5 WPP20G
Iso size code220404
Lead angle60
Length range0.7000 - 10.0000
Manufacturers catalog number8116021
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.8660
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8660
Wiper edgeNo
