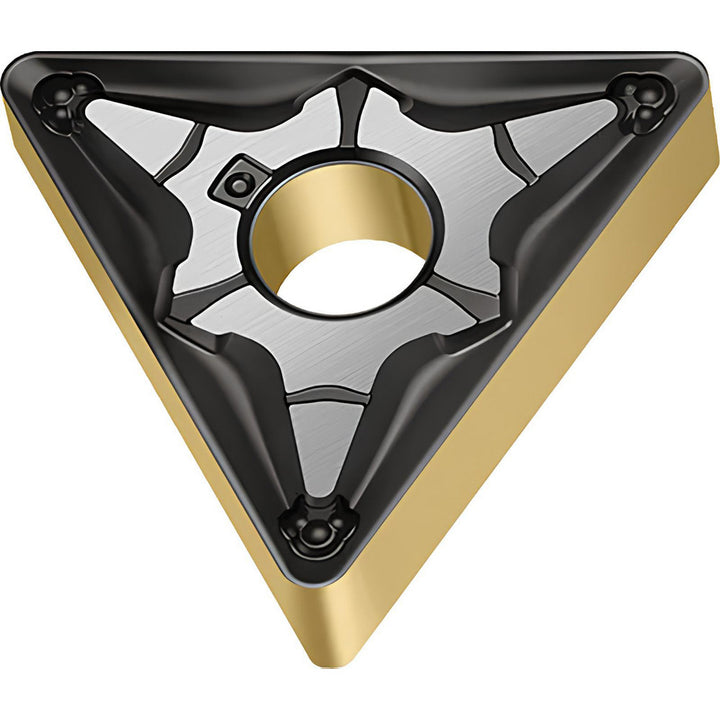

TNMG270616-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8116034

Walter

TNMG270616-MP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8116034

MFR# 8116034ISO/ANSI# TNMG270616Series TNMG-MP5

$39.26List $50.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeT - Triangle
GradeWPP20G
MaterialCarbide
CoatingTiCN

Description

The Walter 8116034 is a TNMG270616-MP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.

Specifications

Ansi insert codeTNMG544
Ansi size code544
Chip breakerMP5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2500
Included angle60
Industry standard numberTNMG544-MP5 WPP20G
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.0630
Insert materialCarbide
Insert shapeT - Triangle
Insert size code544
Insert styleTNMG
Insert thickness in1/4
Iso codeTNMG270616-MP5 WPP20G
Iso insert codeTNMG270616
Iso size code270616
Lead angle60
Length range0.7000 - 10.0000
Manufacturers catalog number8116034
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut1.0830
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle15
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width1.0630
Wiper edgeNo
