Walter

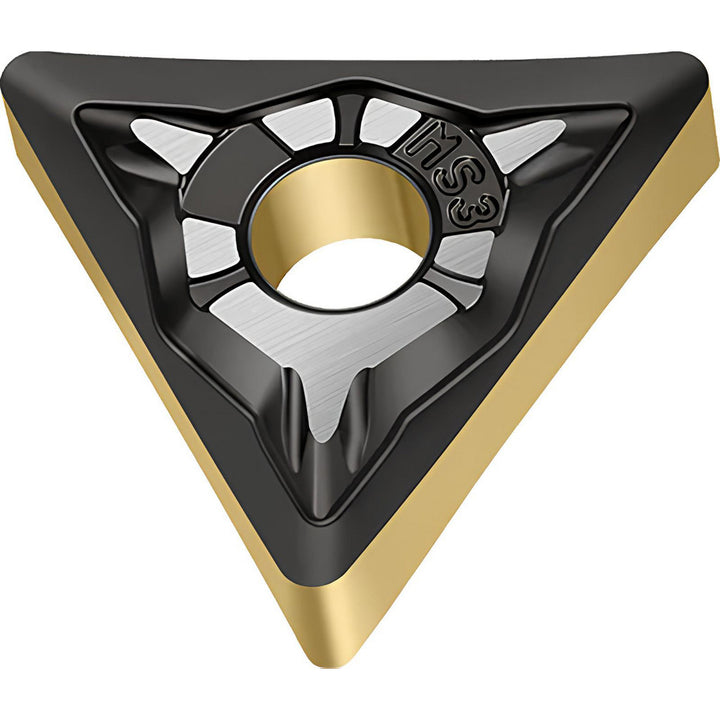

TNMG220408-MS3 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8116038
MFR# 8116038ISO/ANSI# TNMG220408Series TNMG-MS3
$21.31List $27.33
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeWPP20G
MaterialCarbide
CoatingTiCN
Description
The Walter 8116038 is a TNMG220408-MS3 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.
Specifications
Ansi insert codeTNMG432
Ansi size code432
Chip breakerMS3
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle60
Industry standard numberTNMG432-MS3 WPP20G
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220408-MS3 WPP20G
Iso insert codeTNMG220408
Iso size code220408
Lead angle60
Length range0.7000 - 10.0000
Manufacturers catalog number8116038
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.8660
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle13
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8660
Wiper edgeNo
