Walter

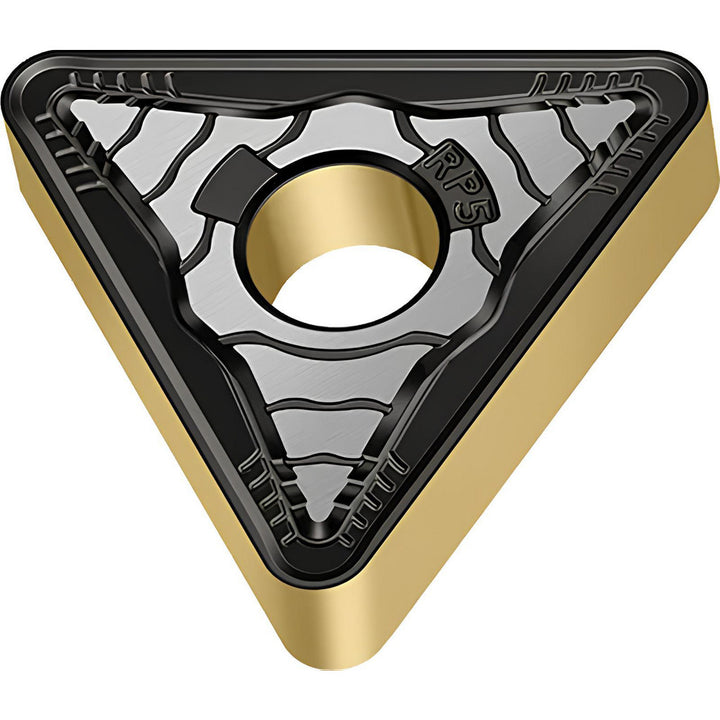

TNMG330924-RP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8116069
MFR# 8116069ISO/ANSI# TNMG666-RP5 WPP20GSeries TNMG-RP5
$76.81List $98.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeTriangle
GradeWPP20G
MaterialCarbide
CoatingTiCN
Description
The Walter 8116069 is a TNMG330924-RP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.
Specifications
Chip breakerRP5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3120
Included angle60degree
Industry standard numberTNMG666-RP5 WPP20G
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2990
Insert materialCarbide
Insert shapeTriangle
Insert size code666
Insert styleTNMG
Insert thickness in3/8
Iso codeTNMG330924-RP5 WPP20G
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number8116069
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut1.2990
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width1.2990in
Wiper edgeNo
