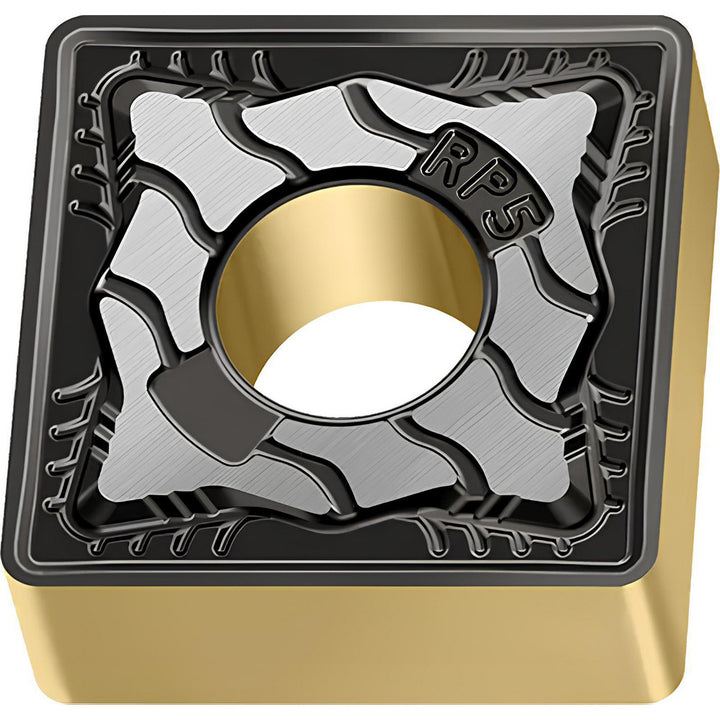

SNMG190616-RP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8116142

Walter

SNMG190616-RP5 WPP20G Carbide Insert, Grade WPP20G, TiCN - Walter 8116142

MFR# 8116142ISO/ANSI# SNMG190616Series SNMG-RP5

$42.19List $54.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeS - Square
GradeWPP20G
MaterialCarbide
CoatingTiCN

Description

The Walter 8116142 is a SNMG190616-RP5 WPP20G carbide indexable insert, grade WPP20G, TiCN coated. Suited for steel.

Specifications

Ansi insert codeSNMG644
Ansi size code644
Chip breakerRP5
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.3120
Included angle90
Industry standard numberSNMG644-RP5 WPP20G
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeS - Square
Insert size code644
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190616-RP5 WPP20G
Iso insert codeSNMG190616
Iso size code190616
Lead angle90
Length range0.7000 - 10.0000
Manufacturers catalog number8116142
Manufacturer gradeWPP20G
Material gradeP20; K30
Maximum depth of cut0.7500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
