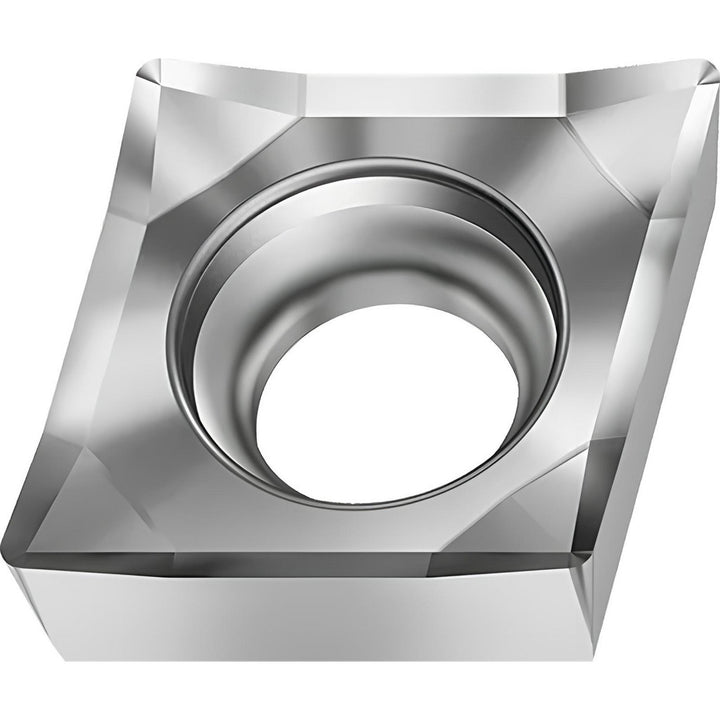

CCGT060201-MN2 WN10 Carbide Insert, Grade WN10 - Walter 8132929

Walter

CCGT060201-MN2 WN10 Carbide Insert, Grade WN10 - Walter 8132929

MFR# 8132929ISO/ANSI# CCGT2(1.5)0.2-MN2 WN10Series CCGT-MN2

$17.35List $22.24 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond
GradeWN10
MaterialCarbide

Description

The Walter 8132929 is a CCGT060201-MN2 WN10 carbide indexable insert, grade WN10. Suited for non-ferrous metal.

Specifications

Chip breakerMN2
Clearance codeC
Coating processUncoated
Corner radius0.0040
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCCGT2(1.5)0.2-MN2 WN10
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond
Insert size code21.50.2
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060201-MN2 WN10
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number8132929
Manufacturer gradeWN10
Material gradeN10; S10
Maximum depth of cut0.0591
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle7
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeG
Width0.254
Wiper edgeNo
