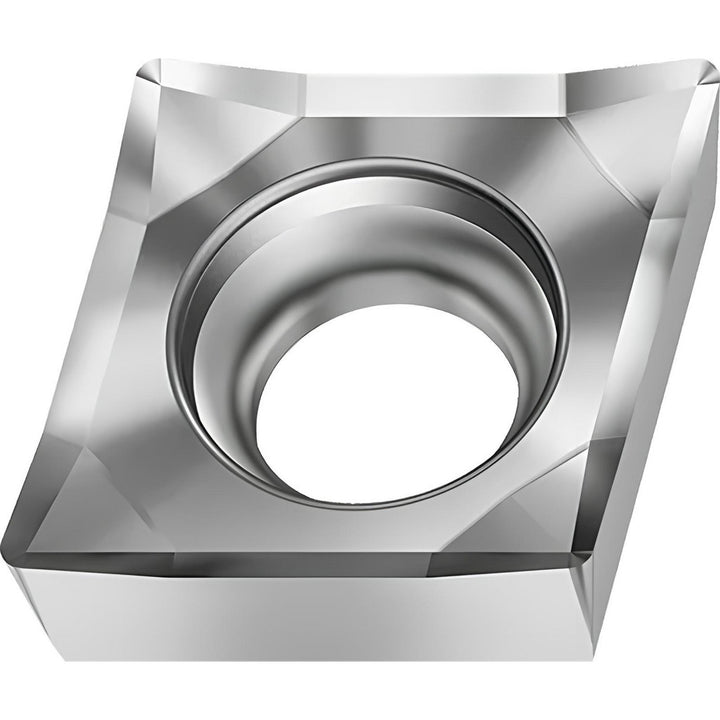

CCGT09T302-MN2 WN10 Carbide Insert, Grade WN10 - Walter 8132966

Walter

CCGT09T302-MN2 WN10 Carbide Insert, Grade WN10 - Walter 8132966

MFR# 8132966ISO/ANSI# CCGT09T302Series CCGT-MN2

$18.70List $23.98 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeWN10
MaterialCarbide

Description

The Walter 8132966 is a CCGT09T302-MN2 WN10 carbide indexable insert, grade WN10. Suited for non-ferrous metal.

Specifications

Ansi insert codeCCGT32.50.5
Ansi size code32.50.5
Chip breakerMN2
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating processUncoated
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCCGT3(2.5)0.5-MN2 WN10
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3810
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.50.5
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T302-MN2 WN10
Iso insert codeCCGT09T302
Iso size code09T302
Lead angle80
Length range0.3000 - 0.4000
Manufacturers catalog number8132966
Manufacturer gradeWN10
Material gradeN10; S10
Maximum depth of cut0.0780
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle7
Secondary workpiece materialSuperalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.3810
Wiper edgeNo
