Walter

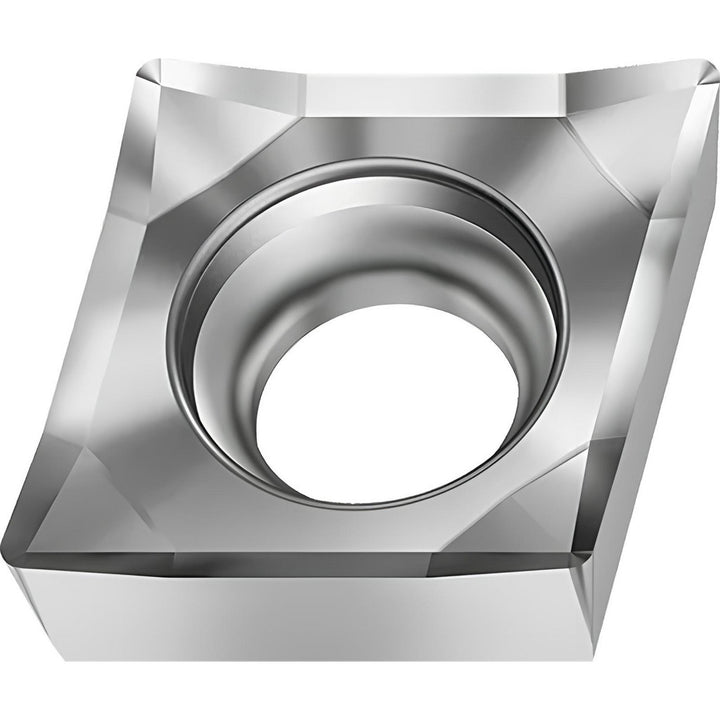

CCGT120404-MN2 WN10 Carbide Insert, Grade WN10 - Walter 8132973
MFR# 8132973ISO/ANSI# CCGT120404Series CCGT-MN2
$20.03List $25.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeWN10
MaterialCarbide
Description
The Walter 8132973 is a CCGT120404-MN2 WN10 carbide indexable insert, grade WN10. Suited for non-ferrous metal.
Specifications
Ansi insert codeCCGT431
Ansi size code431
Chip breakerMN2
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2170
Included angle80
Industry standard numberCCGT431-MN2 WN10
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCCGT
Insert thickness in3/16
Iso codeCCGT120404-MN2 WN10
Iso insert codeCCGT120404
Iso size code120404
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number8132973
Manufacturer gradeWN10
Material gradeN10; S10
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle7
Secondary workpiece materialSuperalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.5080
Wiper edgeNo
