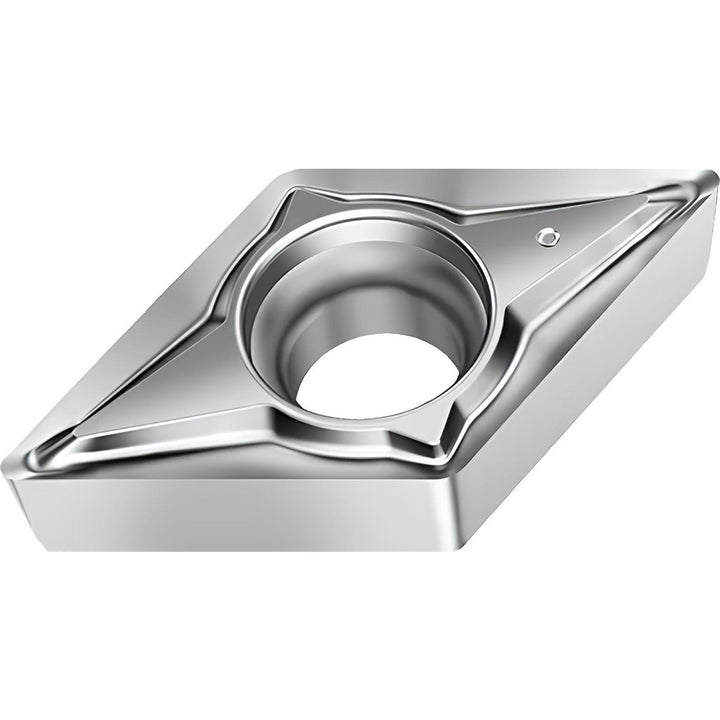

DCGT11T304-FN2 WN10 Carbide Insert, Grade WN10 - Walter 8132984

Walter

DCGT11T304-FN2 WN10 Carbide Insert, Grade WN10 - Walter 8132984

MFR# 8132984ISO/ANSI# DCGT11T304Series DCGT-FN2

$19.96List $25.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeWN10
MaterialCarbide

Description

The Walter 8132984 is a DCGT11T304-FN2 WN10 carbide indexable insert, grade WN10. Suited for non-ferrous metal.

Specifications

Ansi insert codeDCGT32.51
Ansi size code32.51
Chip breakerFN2
Chip breaker operationFinishing
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55
Industry standard numberDCGT3(2.5)1-FN2 WN10
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4580
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304-FN2 WN10
Iso insert codeDCGT11T304
Iso size code11T304
Lead angle55
Length range0.4000 - 0.5000
Manufacturers catalog number8132984
Manufacturer gradeWN10
Material gradeN10; S10
Maximum depth of cut0.0980
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSuperalloys & Titanium
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
