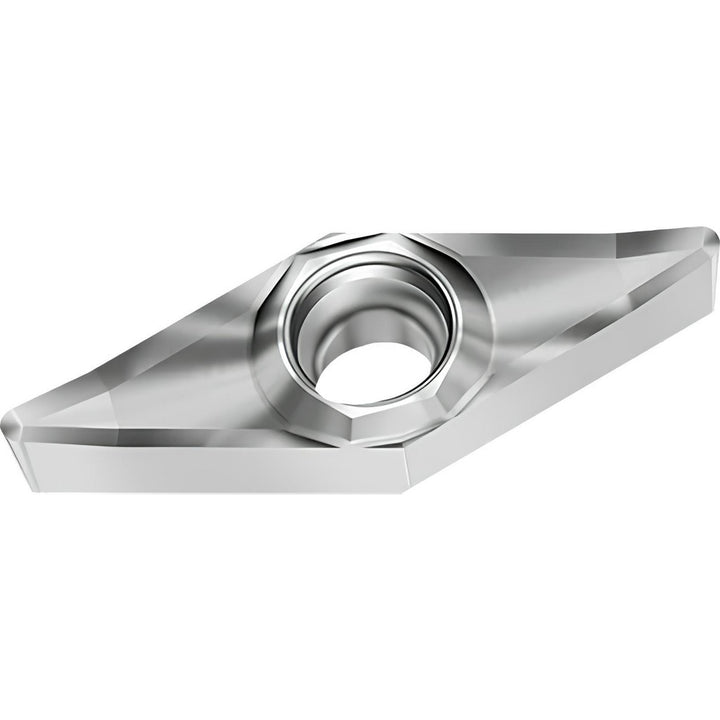

VCGT160404-MN2 WN10 Carbide Insert, Grade WN10 - Walter 8133015

Walter

VCGT160404-MN2 WN10 Carbide Insert, Grade WN10 - Walter 8133015

MFR# 8133015ISO/ANSI# VCGT331-MN2 WN10Series VCGT-MN2

$26.54List $34.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeWN10
MaterialCarbide

Description

The Walter 8133015 is a VCGT160404-MN2 WN10 carbide indexable insert, grade WN10. Suited for non-ferrous metal.

Specifications

Chip breakerMN2
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1730
Included angle35degree
Industry standard numberVCGT331-MN2 WN10
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond 35
Insert size code331
Insert styleVCGT
Insert thickness in3/16
Iso codeVCGT160404-MN2 WN10
Lead angle35degree
Length range0.6500 - 0.7000
Manufacturers catalog number8133015
Manufacturer gradeWN10
Material gradeN10; S10
Maximum depth of cut0.1382
Multi use applicationTurning; Facing; Boring; Back Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle25
Relief angle7
Secondary workpiece materialSuper-alloys & Titanium
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
