Walter

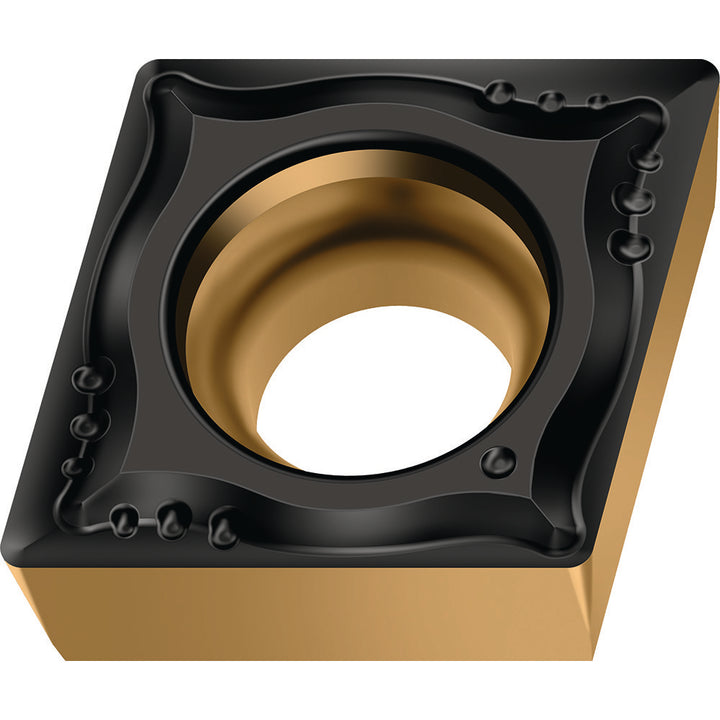

Rhombic 80 Carbide Insert, Grade WPP20G, TiCN+Al2O3+(TiN) - Walter 8204253
MFR# 8204253ISO/ANSI# CPGT09T304Cat# CPGT09T304-MP4 WPP20GSeries CPGT
$33.26List $41.92
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRhombic 80
GradeWPP20G
MaterialCarbide
CoatingTiCN+Al2O3+(TiN)
Description
The Walter 8204253 is a carbide indexable insert, grade WPP20G, TiCN+Al2O3+(TiN) coated.
Specifications
Ansi insert codeCPGT3(2.5)1
Ansi size code3(2.5)1
Chip breakerMP4
Chip breaker operationMedium Machining
Clearance codeP
Coating finishTiCN+Al2O3+(TiN)
Corner radius (mm)0.40
Grade characteristicsCast Iron (K) - Moderate Wear-Resistance and Toughness; Steel (P) - Moderate Wear-Resistance and Toughness
Included angle80.00
Inscribed circle (mm)9.53
Insert handNeutral
Insert holding methodScrew
Insert length (mm)9.67
Insert materialCarbide
Insert shapeRhombic 80
Insert size code09
Insert styleCPGT
Insert thickness3.97
Iso insert codeCPGT09T304
Iso size code09T304
Manufacturers catalog numberCPGT09T304-MP4 WPP20G
Manufacturer gradeWPP20G
Maximum depth of cut (mm)3.00
Number of cutting edges2
Relief angle11.000
Side clearancePositive
Tolerance codeG
Wiper edgeNo
